Model:PDQ
Send Inquiry

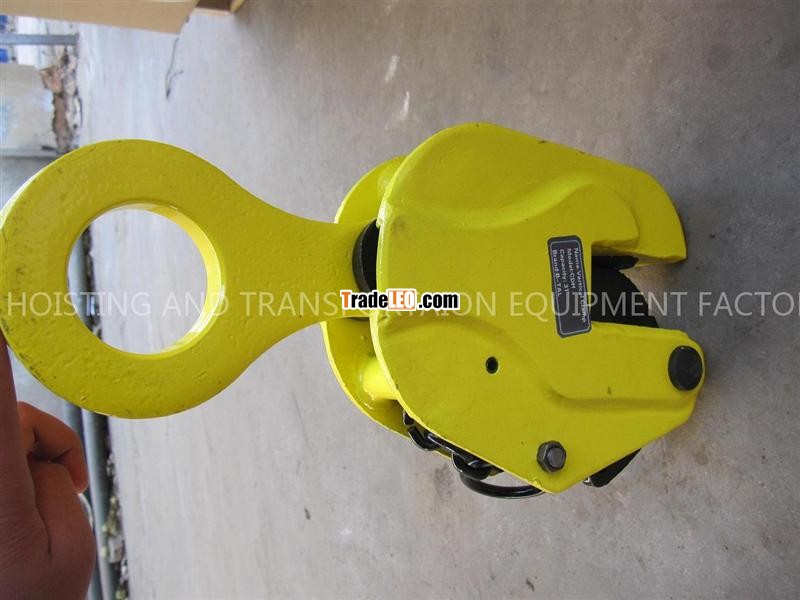

1. Lifitng Clamp application: Horizontal lifting of steel plate.
2. Lifting Clamp material: Low carbon steel alloy.
3. Lifting Clamp loading range: 1 to 10 ton.
4. Horizontal Lifting Clamp two pieces of clamps are used for the testing, but 4 pieces are recommended for lifting operation. Balance beam is needed, otherwise, It will cause automatic unloading.
5. Horizontal Lifting Clamp the loaded object shall not touch anything when operating, over loading is prohibited.
6. Horizontal Lifting Clamp testing load is 2 times of working load.
7. Plate Clamp The rated loading is the maximum weight as the angle is 60 degree and a pair of clamps are recommended.
8. Screw Clamp durable enduring, easy operation.
| Art. No. | WLL/(t) | Stell plate Thickness(mm) |
| PDQ1 | 1 | 0-50 |
| PDQ2 | 2 | 0-60 |
| PDQ3.2 | 3 | 0-90 |
| PDQ5 | 5 | 0-120 |
| PDQ8 | 8 | 0-130 |
