Detailed Product Description

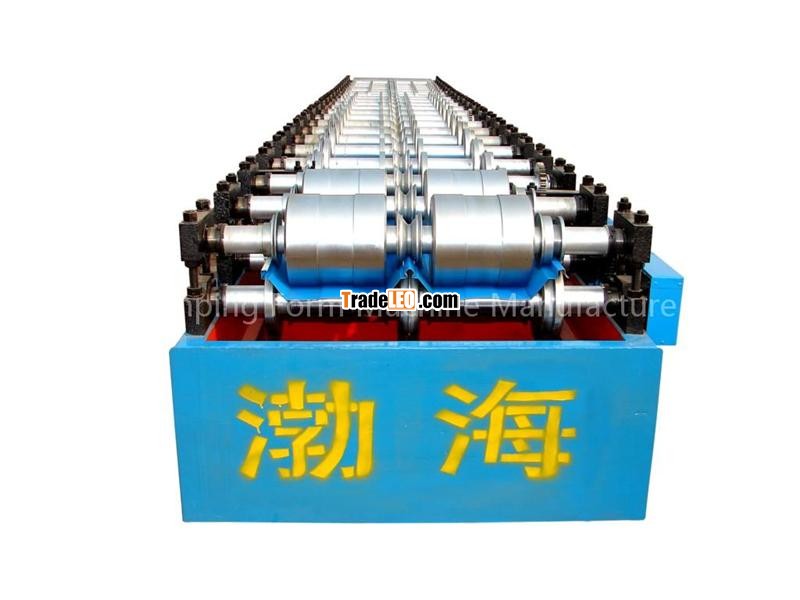

Model LM-760 forming machine consists of uncoiler and its base,
coil sheet guiding equipment, film covered device, roll forming system,
post-cutting equipment, hydraulic station, controlling system and supporter
table.
Technical parameters:
1) Material spec: colored steel sheet, galvanized steel sheet
2) Thickness of coil sheet: 0.25 - 0.8mm
3) Main motor power: 4kW
4) Forming speed: 10 M/min
5) Hydraulic station power: 3kW
6) Quantity of stands: about 22 groups
7)Size:11.5M*1.5M*1.6M
8) Controlling system: PLC
9) Index error of length: 10m - 2mm
10) Total weight: about 5900KG
11) Voltage: 380V 3 phase 60Hz or at buyer's requirement
