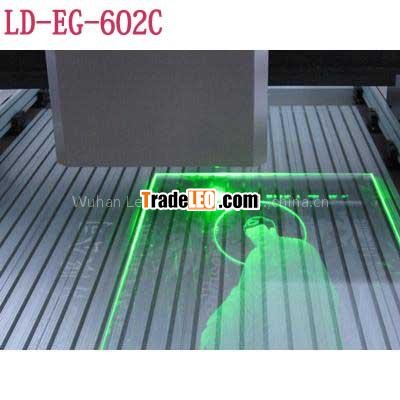

Model:LD-EG-602C
large scale laser subsurface engraving machine
Our self-developed large scale laser subsurface engraving machines LD-EG-602C are used to engrave all kinds of patterns into transparent material such as glass, crystals etc as a decoration. When the engraved pattern glow in the lamplight, the engraved products can be used as tag, caution light and decoration. It is highly apply in architectural decoration, fashion home decoration, advertisement, photo studio, religion decoration and personalize crystal gift etc.
1. Our LD-EG-602C Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technology together with 2KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively.
2. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production.
3. It has original technology, and the maximum engraving range is 1500mmX 1000mm X80mm.
| Laser Wavelength: | 532nm |
| Highest Frequency of Laser Power Sup: | 2KHz |
| Engraving Speed: | 80000~120000dots/min |
| Maximum Engraving Range: | 1500mm×1000mm×1~80mm |
| Power consumption: | 1.5KW |
| Electricity of the whole machine | 15A |
| Continuous Working Time: | 12 hrs |
| Laser Head Number | 1 |
| Control System | Galvanometer Scanner Technology, DSP,3D |
| Cooling System:
| Semiconductor Cooling, free of other cooling mediums or air cooling optional |
| Deadweight of Main Machine | 450kgs |
| Dimension of Main Machine: | 1400mm×2100mm×1200mm |
