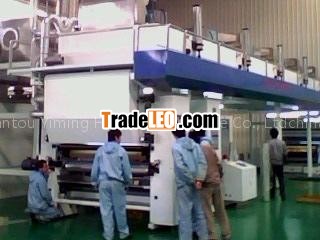

Design Principles of YM-MYM CA-1650A
The frame construction is precision-engineered that enables to meet the high requirement on foil used as holographic coated and so on.
With Yiming Paten heating system, you can reduce energy by 50% compared with normal coating machine. We guarantee a high degree of accuracy for the finishing process with online measurement. This can be ensured at the time of purchase.
Specification
1. Working width:1650mm
2. Coating material: PET 12~60mic, OPP/BOPP: 15~60mic
3. Machine speed: 220m/min, coating speed: 200m/min
4. Re-winder/Un-winder OD: 800mm
5. Re-winder/Un-winder air shaft roller: 6
6. Web guide system: base style EPC
7. Main heating tunnel: 15000mm, six zone, Inside steel
8. Re-winder: stick roller
9. In/out-feed Nip roller : Right and left pressure separate adjustable
10. Coating roller: Right and left pressure separate adjustable
11. Size(L x W x H) : 16 x 3.2 x4.5m
Operational Control Panel
Control Panel
| PLC, all data of control system will be set and showed on Touch Screen, including Warning and Help online, made by Simens |
Speed control: | Manual or Auto |
Input requirement (provided by the buyer)
Electrical Supply 3 Phase 380 volts 50 Hz , 5 lines or as required
Air Supply 6~8kg/cm2 dry, filtered and regulated
Water Supply 2kg/cm2 Cold water for cooling unit
Technical documents
Operating manual
Install Instruction
Major component instruction
Spare List
Switch 4 sets
Induction Switch 1 set
Kit: 1 suit
