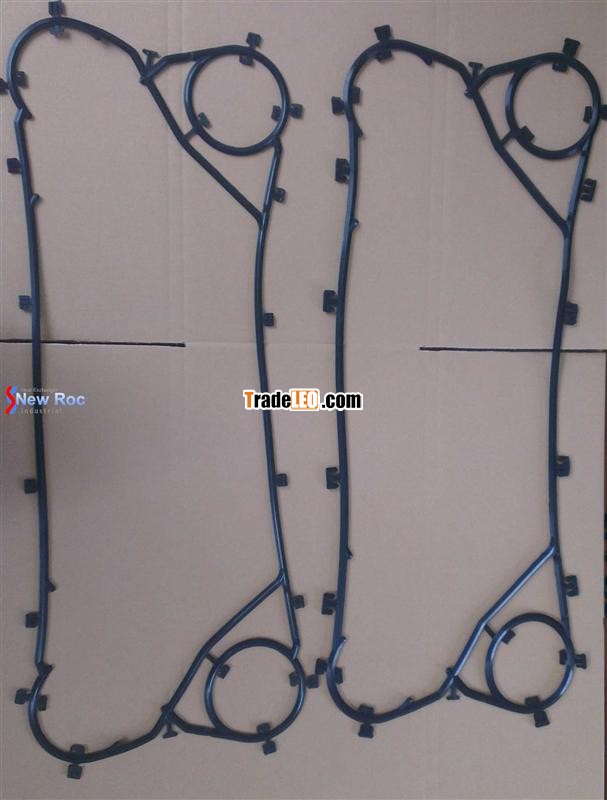

Seals and gaskets of our company are made of various special rubber according to different fields and conditions. We have strict testing criterion and quality control system from raw materials to procucts. We can provide the following seals and gaskets.
PHE gasket catelogue| ALFALAVAL | M3,M6,M6M,M10B,M10M,M15B,M15M,M20M,M20FG,MX25B,M30,A15B, AM10,AM20,TS20,EC500,P31,CLIP6,CLIP10,TS20,MA30,A10,A20.AK20, P26,P36,M6MW,M10BW,M15BW,M20MW |
| SonDEX | S4,S7,S8,S14,S15,S18,S21,S30,S37,S39,S41,S42,S43,S50,S47,S62,S65, S83,S100 |
| VICARB | V4,V10,V13,V28,V45,V60,V85,V100,V110,V130,V170,V280 |
| GEA | VT10,VT20,VT40,VT40M,VT80,VT80M,VT130,NT100-T,NT100-X,NT100-M, NT150S,NT150L,NT250S,NT250L |
| HISAKA | RX70,LX-50,EX15,EX16,UX416 |
| APV | T4,SR1,SR2,SR3,SR6,SR9,HX,LR4,J060,J092,J107,J185,N25,N35,N50, K34,K55,K71,M60,M92,P105,P190,U2,Q030,Q055,Q080,A085,A055,H12, H17,V03 |
| TRANTER （SWEP） | GX-12,GL-13,GX-018,GX-26,GC-26,GC30PI,GC60PI,GX51,GC-51,GX60, GX100,GX180,GX214,UX01,UX05,UX20,UX40,S-3 |
| Schmidt | Sigma 7,Sigma 9,Sigma 26,Sigma 27,Sigma 29, Sigma 37, Sigma 38, Sigma 66, Sigma 90, Sigma 107 |
-
we can make phe gasket mold for you
Gasket Material
| Material | Temperature | Apply Medium |
| NBR | -25~110° C | Water, Industrial & Edible Oil, Salt |
| HNBR | -25~150° C | Crude Oil, Sulfocompound, Heat Transfer Oil. |
| EPDM | -50~150° C | Hot Water, Vapour, Weak Acid& base, Ketone. |
| EPDM-HT | -50~170° C | As EPDM Where Higher Temperature Required |
| VITON | -20~180° C | Vapour, Oil, Strong Acid& base, Chlorine Acid. |
-
We supply Industrial grades as well as food grades with FDA Approval.
