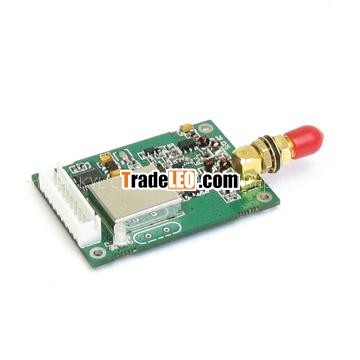

The low-power wireless transceiver data module is used as the wireless data transceiver in short-ranges, with the small size, weight and power consumption and good stability and reliability

Narrowband low power UHF wireless data transmitters and receivers with channel spacing as low as 25 kHz

Specifications:

Power output: DC 5V (customize)

RF power: ≤500mW(customized 500mW~1W)

RF effective rate: 1,200/2,400/4,800/9,600/19,200bps

Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps optional

Frequency band: 433 MHz, 450MHz,470MHz, 868MHz, 915MHz or ISM others

Interface: standard RS-232/RS-485/TTL

Communication mode: half-duplex

Offering a transparent data interface, it is suitable for any standard or non-standard user protocols

Channel: 8(default),16/32(customized)

Receive current: less than 28mA(TTL connect)

Receive sensitivity: -123dBm@1,200bps); -118dBm@9,600bps)

Transmitting current: less than 400mA

Sleep current: less than 20uA

RF line-of-sight range: more than 2km(BER=10-5@9,600bps); more than 3km(BER=10-5@1,200bps)

Size: 53 x 38 x 10mm (without antenna port).

Application:
rel="nofollow" rel="nofollow" rel="nofollow" Agriculture Feed Monitoring
Agriculture GPS Products
Automated Meter Reading (AMR)
Automatic Vehicle Location (AVL)
Display Signs
Factory Automation
Fleet Management
Gaming Machines
GPS Surveying
Ground-to-Aerial Vehicle Monitoring
Handheld Devices
Industrial Wireless Control
Irrigation Systems
Lottery Terminals
Military Applications
Modbus PLCs and RTUs
Motor Sport Racing
Oil & Gas Monitoring
Pipe and Cable Location
PLCs
Power System Monitoring
Wireless PTZ Remote Control
Robotics Control
SCADA
Security Systems
Telemetry
Traffic Control
Vending Machines
Waste Water Management
Weather Stations
