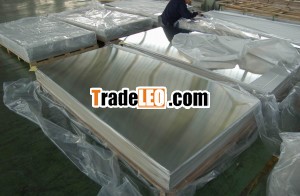

Alloy 6061 aluminum plate are one of the most versatile and widely used of the heat treatable alloys. This wrought tooling plate exhibits excellent machinability, weldability, and medium strength. Though less strong then most of the 2xxx and 7xxx alloys, 6061 aluminum plate is typically selected where welding or brazing is required or for its high corrosion resistance in all tempers. It has exceptional joining characteristics, good acceptance to anodizing and is easily cold worked and formed in the annealed condition.
Applications of 6061 Aluminum Plate:
- Aircraft landing parts
- Marine vessels
- Structural architectural parts
- Storage tanks
- Heat exchangers
| Silicon | 0.40-0.8 |
| Iron | 0.7 |
| Copper | 0.15-0.40 |
| Manganese | 0.15 |
| Magnesium | 0.8-1.2 |
| Chromium | 0.04-0.35 |
| Zinc | 0.25 |
| Titanium | 0.15 |
| Others, each | 0.05 |
| Others, total | 0.15 |
| Balance, Aluminum |
| Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| KSI | KSI | % | |
| T451 | 35 | 21 | 25 |
| T651 | 45 | 40 | 17 |
Detect-metals stocks a full product line of 6061 plate, all produced and fully certified in accordance with AMS4027, ASTM B209 and ASME SB209.
