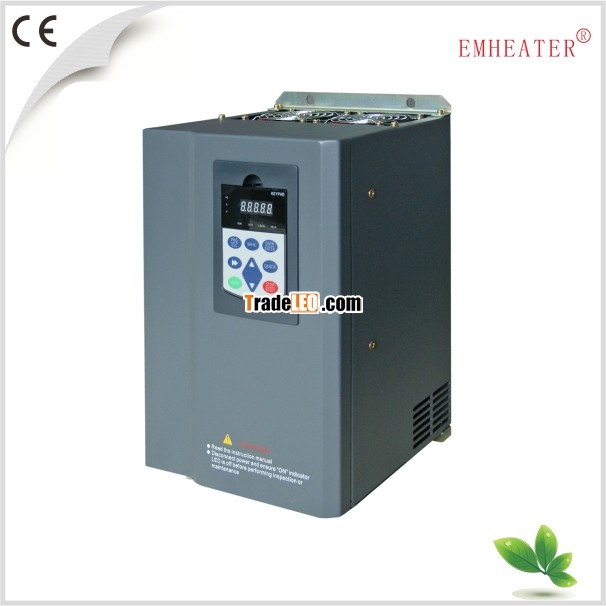

◆EM11is first class frequency inverter with very strong software and hardware.

◆Ithas servo drive feature, with perfect speed control mode, and excellent torquecontrol mode.

◆Itcan save 2 group motor parameters , and can drive synchronous motor andasynchronous motor.

◆Ithas sensor-less vector control (SVC), vector control+ PG; V/F control and V/Fseparation control.

◆Ithas 49 kinds digital input functions and 38 kinds digital output functions.

◆Ithas S curve of acceleration and deceleration, user can self defined S curveturning time.

◆TheIGBT carrier frequency can auto adjustment according to heatsink temperature.

◆35kinds protection function, including auto detecting short circuit after poweron.

◆Includingtextile swing frequency and skip frequency function, etc.

◆Voltage Range：220V～240V; 380V～460V.

◆Input Frequency Range：45～65Hz.

◆Output Voltage Range：0V～rated input voltage.

◆Output Frequency Range：V/F( 0～3000Hz); Vector Control (0~300Hz).

◆Overload Capacity:60s with 150% of ratedcurrent, 3s with 180% of rated current.

◆From 0.75～7.5KW Plastic house; 11～400KW is metal house.

◆Speed Accuracy: ±0.5% (SVC); ±0.02% (VC).

◆Pulsesetting input: 0Khz～100Khz.

◆Allmodel built-in RS485 card, and approved by CE.

◆EM11-G3/P3models are integrated IGBT.

◆The malfunction ratio is 0.1% within 18months warranty.
