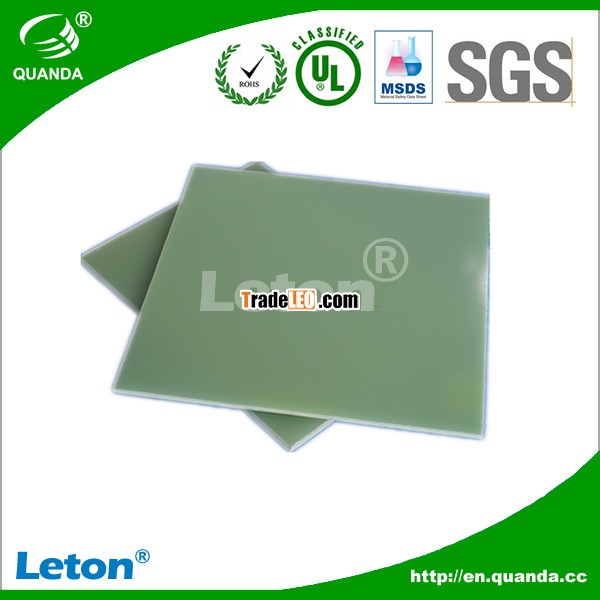

FR4 epoxy fiber glass laminated sheet
2016-10-28 10:30 Views:202
Price:Negotiable
Brand:Leton
Model:FR4
Send Inquiry
| I. Define and purpose |
| This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy resin. It has high mechanic and dielectric performance, applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and in oil of transformer. And it can Withstand a variety of chemical solvents and acid erosion. |
| |
| II. Technical requirement for surface |
| The surface shall tidy and smooth, bubble, impurity are not allowed. But slight scratch and color punctum are allowed. Edge is to be cut smooth. The delamination and crackle on the end surface are not allowed . | Test Item | Unit | Material: Epoxy resin, fiber glass | | FR4 Epoxy | | Vertical layer Direction Flexural Strength Normal≥ | MPa | 340 | | Vertical Layer Direction compressive strength ≥ | MPa | 350 | | Parallel layer Direction IZOD Impact Strength simply-supported beam method ≥ | KJ/m2 | 33 | | Parallel layer Direction shearing strength ≥ | MPa | 34 | | Tensile Strength ≥ | MPa | 240 | | Vertical Layer Direction Electrical strength 900C, (in oil 20 seconds), Gradual step-up method | mV/m | 13.7 | | Parallel layer Direction VB(breakdown voltage) ＞ | KV | 50 | | Relative dielectric permittivity 50Hz ≤ | | 5.5 | | Dielectric loss module 50Hz ≤ | | 0.04 | | Insulation resistance after immersion in water ≥ | Ω | 1.3×1012 | | Density | g/cm3 | 2.0±0.15 | | Water absorption Plate thickness1.6 mm ≤ | mg | 19 | | Flammability | FV | 0 | | Heat resistance ≥ | 0C | 170 | | Color | Green | | Size | mm | 1020×1220 | | Executive Standard | GB/IPC4101 |
