Model:1613740800 Atlas Copco

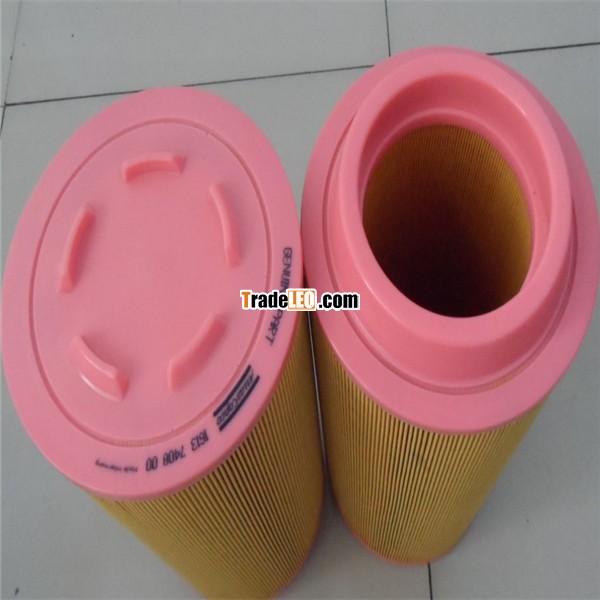

1613740800 Atlas Copco Air Filter Element for Compressor
Technical parameters:
1.Filtering precision:5-10 Micron.
2.Filtration efficiency:98 %.
3.Service life is approximately: 2000h.
4.Filter element of air filter is made by the pure wood pulp paper which imported from America HV& Korea Ahistrom.
Atlas Compressor Air Filter Technical data:
| Model | Diameter | Height | Orangial P/N | FY Model |
| GX5/7/11C | 100 | 80 | 1613 9001 00 | 6160080680 |
| GA11/15/18/22/30 | 138 | 115 | 1619 1269 00 | 6161581638 |
| GA11/18 18/22/30 | 119 | 134 | 1613 8720 00 | 6163481619 |
| GA30/37/10BAR | 159 | 375 | 1613 7407 00 | 6367581659 |
| GA37/45/55C | 194 | 407 | 1613 7408 00 | 6460781694 |
| GA55 | 246 | 365 | 1613 9501 00 | 6365882646 |
| GA75/90C GA75+ | 220 246 | 406 410 | 1613 8004 00 1613 9503 00 | 6460682620 6461082646 |
| GA90/110/132/160 | 280 | 630 | 1621 5107 00 | |
| GA90/110/132/160 | 350 | 345 | 1030 0979 00 1621 5742 00 | 6364583650 6364683649 |
| ZT/ZR315 40M3 (oil compressors) | 390 | 460 | 1621 0546 00 1621 5743 00 | 6466183692
|
| GA37 | 166 | 340 | 1619 2797 00 | C17225/2 |
| GA55 | 230 | 370 | 1619 2798 00 | 6367082630 |
Quality system of 1613740800 Atlas Compressor Air Filter :
1. Our factory has perfect inner quality inpsection system for each procedure ,and QC operators check each production procedure .
We make sure that the parts are qualified flowing into the next producdure .
2.Finished products test in lab as OEM standard and national standard .
3. Passed ISO9001-2000 certification.
