Input voltage: 220V (2-phase) or customized

Power freq.: 50Hz/60Hz

Rated power: 2KVA

Ring diameter: 90-310mm

Wire thickness: 2.5-5mm

Throughput: about 2200pcs/hour(for ring diameter 150mm)

Cooling method: natural cooling

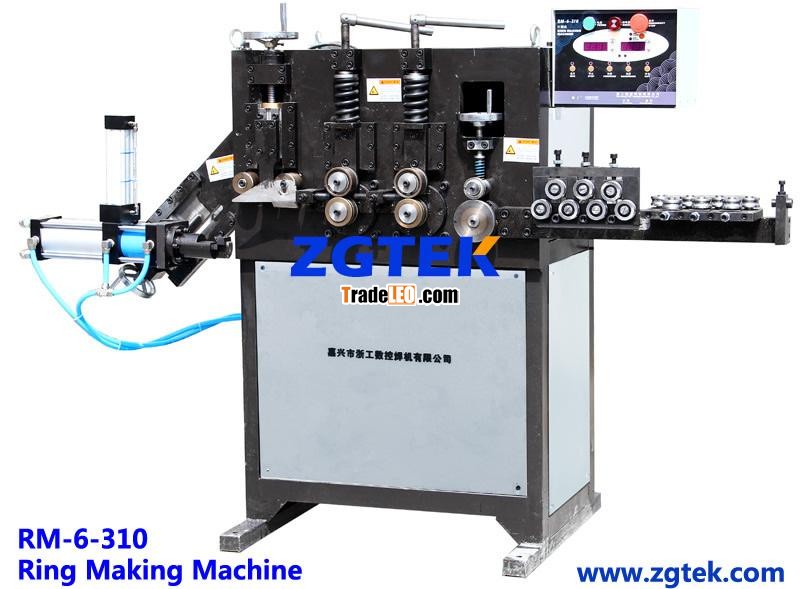

Specially made for cage production

1.High precision: intelligent "S" shape speed curve, the encoder and the servo motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.25mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.

2.High stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts which would get less precise due to wear-out.

3.Easy operation: ring size is adjusted by turning the wheel, much easier than traditional mechanical or hydraulic machines.

4.User friendly UI, the counter always shows the amount of rings formed.
