Motor Protection: Impedance Protection

frame: Aluminum

Impeller: Thermoplastic UL94V-0 P.B.T.

Bearing: 2 Ball-bearing

Lead Wire: UL 1007, AWG 24/210mm

Insulation Resistance:100M Ohm at 500VDC between terminal(wire)(+)and frame

Dielectric Withstand:1500VAC for 1second between between terminal(wire)(+)and frame

Allowable Ambient Temperature Range:

Operating Temperature:-20C~ +70C(Ordinary humidity)

Storage Temperature:-40C~ +80COrdinary humidity)

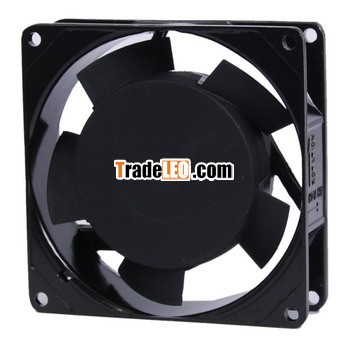

Specifications & Performance:

Size: 92x92x25mm

Model No: BF8025BH

Rated voltage: 110~120V / 220V~240V;

Freq: 50/60Hz

Rated current: 0.07/0.06 A;

Rated input power: 14/13 W;

Speed: 2550~2900 rpm;

Air flow: 30/37 cfm;

Noise: 32/37 dB-a;

Weight: 290 g.
