Electrical  Characteristics
1
Standard  Resistance   Range ..............   1   K      to     100   K    ohm s
Total   Resistance   Tolerance ................   ±10   %
ndependent   Linearity ........................   ±1   %down to ± 0.1 %
Effective   Electrical  Angle ....................   10   °- 350   °/ Available
Repeatability........................................   Less than 0.03
Output  Smoothness............................   0.1  %
Wiper Current......................................   Recommended: a few µA - 1 mA max. (continuous)
Resistance Load on Wiper..................   ≥ 1000 x RT
Power   Rating   (Voltage   Limited  By  Power   Dissipation   or   300   VAC,  Whichever  is   Less)
+70   °C ............................................   1   watt
+125  °C ..........................................   0  watt
nsulation   Resistance   .........................   ≥ 1000 MΩ, 500 VDC
Resolution ..........................................   Essentially  infinit e
Environmental  Characteristics
1
Operating  Temperature  Range ..........   -40  °C  to   +125  °C
Storage  Temperature  Range ..............   -65  °C  to   +125  °C
Vibratio n ..............................................   30...2000 Hz
                                                              Amax = 0.75 mm
                                                              amax = 5 G
Shock ..................................................   50 g
                                                              11 ms
Load  Life ............................................   1,000   hours,   1  watt
Total   Resistance   Shif t ....................   ±10  %  maximum
Rotational  Life   (No   Load) ....................   5,000,000   movements
Total   Resistance   Shif t ....................   ±10  %  maximum
P   Rating ............................................   IP   68

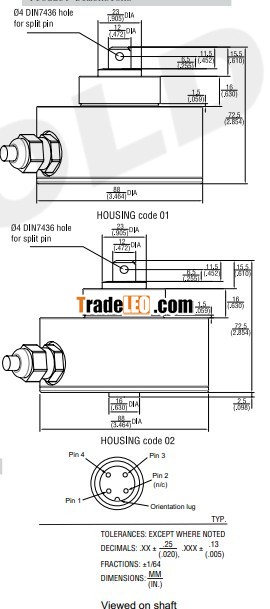

Mechanical  Characteristics
1
Mechanical  Angle ..............................   360°Continuou s
Torque   (Starting   &  Running ) ................   4.0   N-cm  (0.5   oz.-in.)  max.
Shaft  ...................................................   Stainless steel
Shaft Guiding.......................................   Ball bearings
Housing...............................................   anodized aluminum
Wiper...................................................   Precious metal multi-finger contact
Weigh t ................................................   500 g ± 3 gm
Terminals .............................................   Molded-in   side turret   type
Marking ...............................................     Part   number,  resistance  value  and tolerance,linearity code.
Permitted shaft load............................   300N
Maximum operational speed...............   50(RPM)
