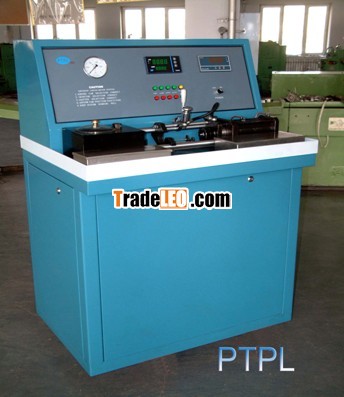

PTPL Injector Calibration Stand Application

PTPL Injector Calibration Stand is used to measure fuel injection volume for the various models injectors in some cycles. The tested injector is clamped automatically when the test begins and at same time the fuel is supplied automatically to the test system. The checking results are very accuracy and reliability.

Features:

1, Fuel injection volume is displayed with numerical code, so that the measuring result can be read clearly and directly.

2, The injector injection intake analogous device, to analogize the work done in the engine.

3, It is easy to disassemble and replace theCam, and can choose different cam according to the difference of the injector.

4, The fuel temperature is controlled automatically, which to make sure it is working at a fixed temperature.

5, Working pressure indicating system, which to make it easier to monitor the changes of every oil pressure.

6, The dashboard is controlled by interlock circuit, which makes the electricity system reliable and safe.

Clamping pressure              100Psi (680KPa)

Seal pressure              75Psi(510KPa)

Main motor power         1.1kw

Pump motor power         0.55kw

Range of measure               500ml/1000stroke

PT-BDF   PT Pump Test Stand Application

PT-BDF PT Pump Test Stand is mainly used to test the performances of PT pump.

Feature:

1, The test stand adopts advanced frequency converter to adjust the speed accuracy and easily.

2, The dual-float-flow meter is used to improve the measurement accuracy.

3, Oil temperature is controlled automatically and an alarm is set for over-temperature.

Main motor power         4kw

Output speed             0-4000r/min

Mainflow              1600L/h

Leakage flow            600L/h

Fuel tank capacity        30L

Temperature control       32-38oC

PT-PM  PT Injector Seal Test Stand Application

The stand can check the seals between plunger and injector body, plunger and nozzle, non-return valve and non-return ball. The checking results resolved that PT injector should be used continually or should be adjusted or replaced. The stand can be mounted easily and can be operated conveniently. The checking results are very accuracy and reliable.

Supply pressure        80Psi

Flow range            0-150

PTC-100A  PT INJECTOR ASSEMBLEY AND DISASSEMBLEY STAND Application(Air drive)

It is use to assemble and disassemble various injectors, and it is air drive

PTXW   Injector Top Stop Setting Fixture Application

Top Stop Setting Fixture – All PT (type D), STC(HVT),and Hyperbaric Top Stop Injectors.

After fuel injector volume is completed measured, we must test the injector plunger subassembly (including STC(HVT) and Hyperbaric Top Stop Injectors). After the injector leakage test, it can be fixed on to test the tappet top stop or the travel setting, which is: Remove the injector tappet, and fix it with spring and elastic cushion, and then put the tappet back.

Working pressure      550±20Kpa(80±3psi)

Stationary weight     2.3kg
