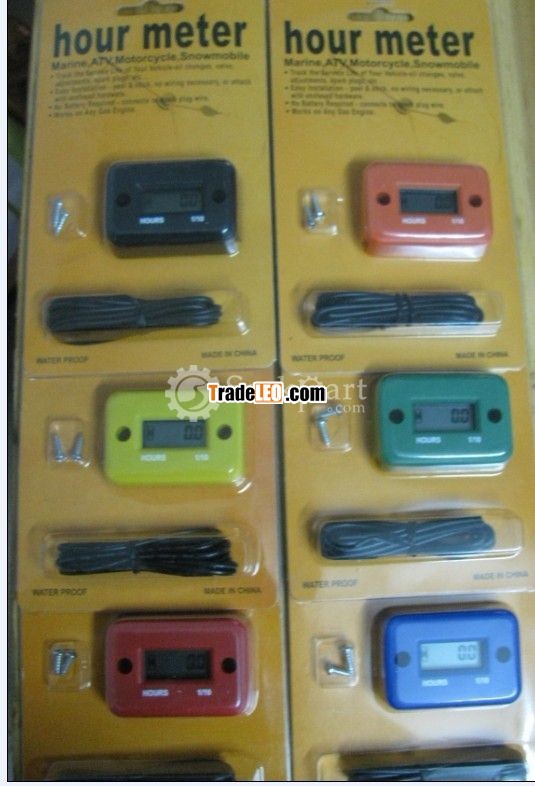

hour meter: 1.has the same features as hour meter 2.easy installation no power or ground required 3.no battery required connects to spark plug wire 4.works on any gasoline engine 5.The maximum time scope is: 9999.9 hours. hour meter installation method 1.Wrap the included pick-up wire around the spark plug wire five times.Start wrapping the pick-up wire about 4cm from the end of spark plug boot .Use the included zip tie to secure the pock -up wire wrapping as shown in the photo right. 2.Before continuing the installation ,insert the pick -up wire into the rear of the meter.Start the motor to make sure the meter is picking up the ignition signal .if it is,this will activate the timer on the meter and the icon on the left of the LCD will flash .You 'll have to wait at least 6 minutes for the timer to increase the timer display (1/10th of an hour). if it is not picking up the ignition signal ,slide the pick-up wrap closer to the spark plug boot. 3.if the meter is successfully picking up the spark signal ,run and zip tie the pick-up along one of the throttle cables. make sure the pick-up wire can npt make contact with the engine.Also,make sure you leave enough slack (about 8cm) so removing the spark plug wire is possible . Keep in mind the general location of final mounting location on the frame spare. 4.Securing Method: a.Drilling into your frame with 2.5mm socket it to the frame coming with two pick -up screws. b.Using padded double -sided tape on the backside of the meter and secured it to the frame spar with zip ties. That's all there is to the installation .now you're set to accurately track your mainteance Don't forget to record the metered time when performing maintenance. Quick Facts compatibility:All motorcycle models(anytiong with a spark plug really should work) hardware Included:meter ,pick-up wire,two screws Tools Required: 2.5mm socket to remove shroud,wire cutters
