Model:CH7502
Send Inquiry
| CH7502 | ||

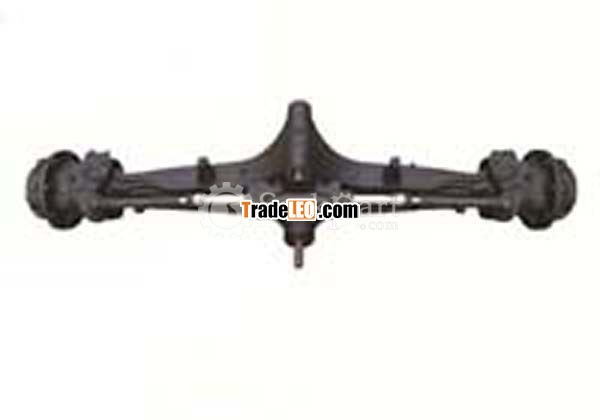

| Engineering Machinery Vehicle Front Steering Driving Axle | ||
| Model | CH7502 | |
| Nominal Load(Kg) | 9000 | |
| Wheel Tread(mm) | 1820° | |
| Kingpin Inclination(°) | 7° | |
| Caster Angle(°) | 0° | |
| Kingpin Camber(°) | 1.5° | |
| Kingpin Distance（mm） | 1560 | |
| Tie-in(mm) -2~2 | 0 | |
| Max.Turning Angle(°) | inner 50°/outer39.32° | |
| Central Reduction Device Ratio | 2.462 | |
| Wheels Reduction Device Ratio | 6 | |
| Axle Weight(Kg) | 320 | |
| Matching Model | 75 Backhoe Loader | |
| CH7502 Performance Features | ||
| 1.Small curve radius, light weight, high rigidity, nice trafficability. | ||
| 2.Joint and composite materials bearing, steering resistance reduced, safe and reliable. | ||
| 3.Wheel reduction gear enlarges output torque to meet torque requirement. | ||
| 4.Applicable to wheel backhoe loader of rated load bucket capacity 1 cbm and rated backhoe bucket capacity0.25-0.3 cbm and other special vehicle |
