Model:250007-838
Products description:
1..Filtration efficiency 98%
2.Filtration Accuracy <=10miu
3.The core life about 2000 H
4.Material: imported fiberglass
5.Great variety of goods

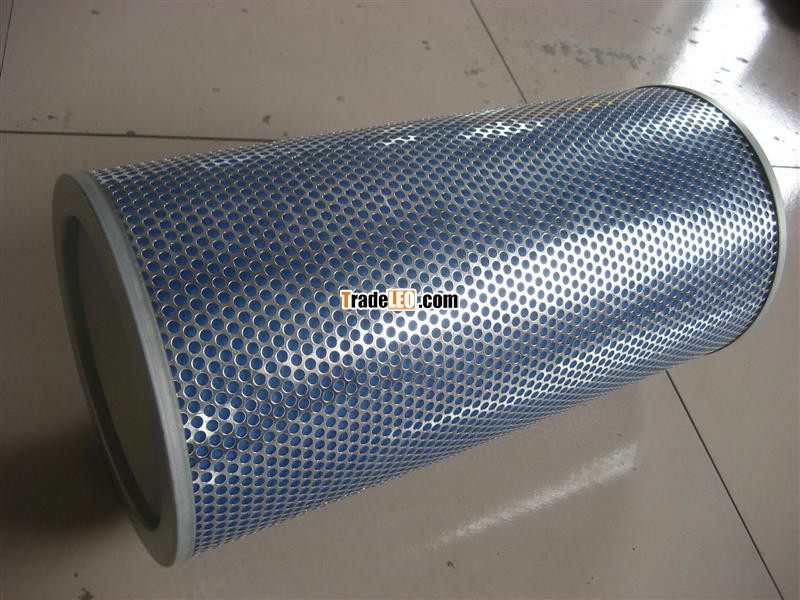

6.Air filter is used for Screw compressor
Part number :
Model | Flow Rate m3/min/0.7mpa | Ademan Model | Diameter | Height | Original P/N |
LS10-25 | 2.8 | AS 401 13 280 | 133 | 280 | 043334 |
LS10-30 | 3.5 | AS 401 19 100 | 198 | 100 | 042445 |
LS10-40 | 4.4 | AS 401 15 305 | 155 | 305 | 040596 88290006-013 02250044-537 |
LS12-50(old) | 6.1 | AS 401 17 407 | 174 | 407 | 049301 |
LS16-75(old) | 9.4 | AS 401 20 405 AS 401 11 400 | 201 116 | 405 400 | 047542 047543 |
LS16-60/75 |
| AS 404 25 135 | 250 | 135 | 040899 |
LA16-100 | 13.2 14.4 | AS 401 25 432 AS 401 14 392 | 252 144 | 432 392 | 02250046-012 02250046-013 |
150 | 21 | AS 401 29 395 AS 401 17 365 | 290 175 | 395 356 | 409853 409854 |
200 | 28.3 | AS 401 20 506 | 209 | 506 | 048463 |
300 350 | 41.8 41.2 | AS 401 35 736 AS 401 25 705 | 350 250 | 736 705 | 250007-838 250007-839 |
LS250-300/350 | 40 | AS 401 38 564 AS 401 24 480 | 380 240 | 564 480 | 88290001-466 88290001-467 |
LS20-175 | 22 | AS 401 41 450 | 415 | 450 | 88290003-111 |
LS20-125/150 | 21 | AS 401 30 380 | 300 | 380 | 88290001-469 |
|
| AS 401 23 330 | 230 | 330 | 250018-652 |
LS325-400 | 40 | AS 401 41 640 | 415 | 640 | 88290004-372 |
LS16-60/75/100 | 13.2 14.4 | AS 401 24 484 AS 401 12 476 | 242 127 | 484 476 |
88290002-337 88290002-338
|
LS10-30(new) | 2.8 | AS 403 13 320 | 137 | 320 | 02250125-371 |
LS10-40(new) | 4.4 | AS 403 16 347 | 163 | 347 | 02250125-372 |
LS25S-300/350(new) | 40 | AS 401 32 605 | 325 | 605 | 88290007-018 |
DPQ750HH |
| AS 401 30 460 | 300 | 460 | 88290005-013 |
|
| AS 401 15 448 | 150 | 448 | 88290005-014 |
