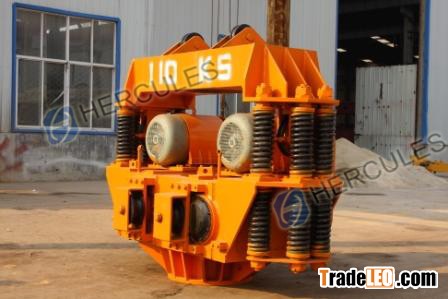

DZ series Vibratory Hammer is a new model product developed by our engineers by the means of inspecting and absorbing domestic and foreign advanced technology and its performance index  reaches the advanced level of domestic similar products. The Vibratory hammers have many good features including strong driving force, pile with good quality, good rigidity , good durability, easy operation and maintenance, high adaptation for power, pile noise-less and low cost.

The vibratory hammer not only mating with the pile frames for cast-in-place concrete piles, expanded-foot tubular piles, lime piles, sand piles and stone piles but also allowing its users to drive different types of precast concrete plant pipes and steel sheet piles via different types of clamp types.

DZ series Spring Vibratory Hammer is an ideal equipment of foundation construction for highways, bridges, airports, railroads, buildings, etc.

Technical Specification of DZ10A:

Motor power: 11KW

Driving force: 76KN

Eccentric Moment: 51N.m

Eccentric Shaft Speed: 1150r/min

Weight: 0.8T

Technical Specification of DZ20A:

Motor power: 22KW

Driving force: 140KN

Eccentric Moment:120N.m

Eccentric Shaft Speed:970r/min

Weight: 2.2T

Technical Specification of DZ30A:

Motor power: 30KW

Driving force: 185KN

Eccentric Moment:170N.m

Eccentric Shaft Speed:980r/min

Weight: 2.2T

Technical Specification of DZ60A:

Motor power:55KW

Driving force: 290KN

Eccentric Moment:300N.m

Eccentric Shaft Speed:985r/min

Weight:4.08T

Technical Specification of DZ60KS :

Motor power: 30x2KW

Driving force: 350KN

Eccentric Moment: 310N.m

Eccentric Shaft Speed: 1000r/min

Weight: 4.36T
