Brand:SHINY
Model:SY-11183
Household Single Cavity Mold 3 Plate Progressive , CUMSA
Quick Detail:
1. The part name: Electric cooker accessories (plastic injection mold)
2. Plastic material: ABS+PC
5. Gate type: Point gate, Sub-gate, direct gate, fan gate, edge gate, valve gate, tip gate etc according to our customers requires.
3. Cavity material: H13 HRC48-52
4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.
6. Mold base standard: LKM Local standard, DME or HASCO,Customize according to customers' requirements
7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.
Specifications:
| 1.name | Electric cooker accessories (plastic injection mold) |
| Plastic material | ABS+PC,GPPS,PP,PE,PA,PC,PC+ABS,POM,PVC,PMMA,PS,PPO,ASA,TPU,TPR,EVA,PP+GF, PC+GF,POM+GF,PA+GF,PPT,PET,PETG,SEBS etc. |
| 3.mould base material | S50C,P20,S136 etc |
| 4.cavity material | H13 HRC48-52,S136,420, P20, D2, 1040, 0-1, S-7, A2, 1.2344, 1.2083, 1.2311, 1.2739, 1.2343, 1.2510, 1.2767,NAK80,SKD61,718,738,DF-2 etc |
| 5.mold life | 1000k shots or according to customers quantity condition to decide it with saving cost for our customers. |
| 6.cavity number | 1 |
| 7.runner | Cold runner |
| 8.gate type | Point gate, Sub-gate, direct gate, fan gate, edge gate, valve gate, tip gate etc according to our customers requires. |
| 9.mould weight | 400 kg |
| 10. mould base standard | LKM Local standard, DME,HASCO,Customize according to customers' requirements |
| 11.cycle time | 32 second |
| 12. standard of mold accessories | LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires. |
| 13.design software | Auto CAD ,UG, Pro-E ,Solid Works,Moldflow,etc. |
| 14. File Formats | Auto CAD (DWG), DXF, JPG or JEPG, PDF, Pro-E or Pro/Engineer(DRW,PRT), IGES, STEP,XTL,UG parts etc. |
| 15. injection molding machine | about 200T |
| 16. MOQ | 1 set |
| 17. payment | T/T, To be negotiated |
| 18.package | Wooden case or Wooden box with steel frame |
| 19. delivery time(day) | 35 T1 according to customers' requirements |
| 20. OEM or ODM | is available |
| 21. mould logo | based on customer requires |
| 22. after-sales service | one year is warranties |
Applications:
Molding the plastic product by plastic injection machine
Description:
Ejection type: ejection pins, ejection sleeves.
Mold construction description: cold runner system with point gate, 3 plates, and many sliders, inserts and lifters.
Mold type: Plastic Injection Mould with cold runner system
Part Material: ABS+PC
Locating ring Dimension: Ф100
The part name: Electric cooker accessories
KO Pattern: 200*200
Sprue Radius: SR 19

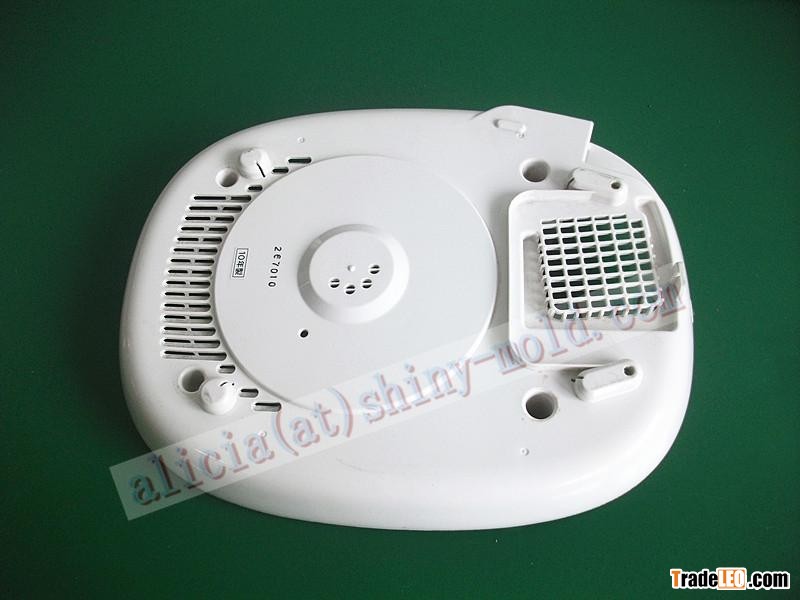

This product is made of ABS+PC plastic material and it is one of the components of the reputable brand electric cooker . The mold construction is complicated and there are many inserts, sliders, lifters and ejection pins, so it has a very high technical requirement for the mould design. The mould is a cold runner mould with water cooling system and the part can be molded by automatically.
This part has very high appearance and size requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport,Sliver Marks,Gas Trap Effect,Visible Ejector Marks,Deformation,Short shot Filling,Burnt Streaks,Sink Marks,Flash,Over dimension,Under dimension,Stress Crack etc. Moreover, the product finishing surface must meet the requires more than SPI-SPE-A2.
This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.
