Brand:DURNEY
Model:DY-SC38

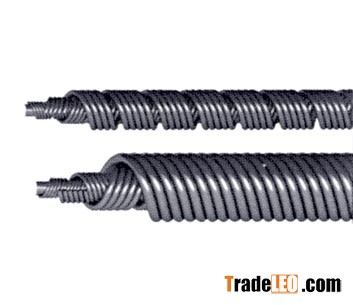

Flexible shafts are the machine elements assigned to the transmission of motions between two axes which do not coincide or
whose mutual position while working changes.Flexible shafts are manufactured by winding up of quality steel wire in several
layers.
| Diameter (mm) | Tolerance (mm) | Number of Layers | Loading Moment | Weight |
| 2.0 | +0.02 | 3/5 | 0.8 | 1.8 |
| 2.5 | 3/5 | 1.0 | 2.8 | |
| 3.2 | 3/5 | 1.3 | 4.6 | |
| 3.8 | 3/5 | 1.5 | 6.5 | |
| 5.0 | +0.00 | 3/4/5 | 1.8 | 11.3 |
| 6.0 | 3/4/5 | 2.4 | 16.2 | |
| 6.5 | 4/5/7 | 2.9 | 18.7 | |
| 8.0 | 5/7 | 7.5 | 28.8 | |
| 10 | 4/5/6 | 22.5 | 45.5 | |
| 12 | 5/7 | 39.0 | 66.5 | |
| 13 | 5/7 | 50.5 | 77.5 | |
| 16 | 5/7 | 115.0 | 114 | |
| 18 | 5/7 | 160 | 145 | |
| The flexible shafts not listed in the chart can be customized | ||||
APPLICATION for control instruments and mostly for speed recording number of kilometers and operating time by the way of
speed indicators, tachygraphs built into motorcycles, cars, trucks and tractors.
Quality:
Smooth, highly-elastic and wear-resistant shaft core is guaranteed. We believe quality is the base of longtime cooperation.We have strick quality control systerm to make sure our goods will be same as your confirmed sample.
Certificates:
CE certificates.
MOQ:
We have stocks in a big warehouse, which make it easier to keep your trial order completed on time.
OEM:
We can make the design,do the package as your request.
Speedometer core inner cable, flexshaft cable, flexible drive shaft, flex cables & shafts, speedometer cable, flexible shaft cable, flexible shaft inner wire, speedometer inner wire, clutch and brake wire, flex shaft, drywall sander inner cable, flexishaft, flexishaft core, flexishaft inner wire, flexible shaft inner core, flexible shaft, flexible shaft cable, speedometer and tacho meter cable, brush cutter flex shaft, brush cutter shaft, tube cleaner inner core, wall& ceiling sander inner cable
