Motor Protection: Impedance Protection

frame: Aluminum

Impeller: Thermoplastic UL94V-0 P.B.T.

Bearing: 2 Ball-bearing

Lead Wire: UL 1007, AWG 24/210mm

Insulation Resistance:100M Ohm at 500VDC between terminal(wire)(+)and frame

Dielectric Withstand:1500VAC for 1second between between terminal(wire)(+)and frame

Allowable AmbientTemperatureRange:

Operating Temperature:-20°C~ +70°C(Ordinary humidity)

Storage Temperature:-40°C~ +80°C(Ordinary humidity)

Specifications & Performance:

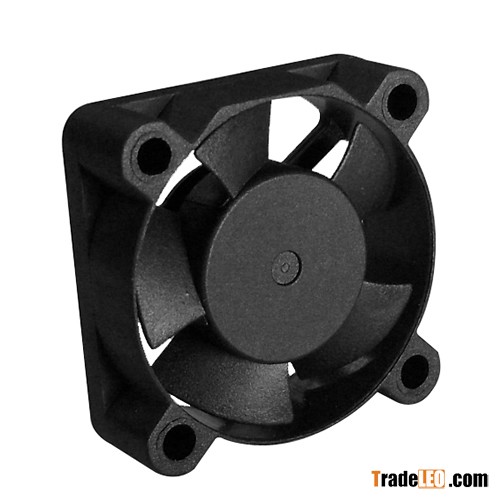

Size: 30x30x10mm

Model No: DC-BF3010B

Rated voltage: 12V;

Freq: 50/60Hz

Rated current: 0.037/0.071 A;

Rated input power:0.45/0.86w

Speed: 6000/10000 RPM;

Air flow: 2.65/4.23 cfm;

Noise: 18/28 dB-a;

Weight: 9g.
