Brand:Shengqing
Model:type CD
Send Inquiry
The CD drill pipe elevator w produce is strictly according to API standard with high quality and competitive price

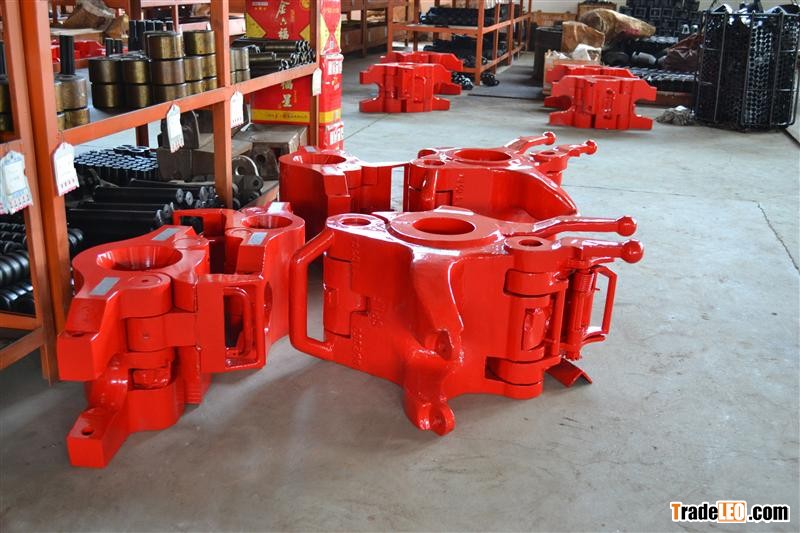

CD drill pipe elevators are conventional side door drill pipe elevators for handling 90 degree shoulder drill pipe in oil and gas drilling operation, CD drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested.
1. Pipe range size: 2 3/8~9 7/8
2. API Spec 8A/8C Standard
3. Rated Capacity: 150~750T
Model |
Size (in) |
Rated Cap (Short Tons) |
CD-150 | 2.3/8-14 | 150 |
CD-200 | 2.3/8-14 | 200 |
CD-250 | 2.3/8-20 | 250 |
CD-350 | 4.1/2-20 | 350 |
CD-500 | 4.1/2-14 | 500 |
CD-750 | 4.1/2-9.7/8 | 750 |
