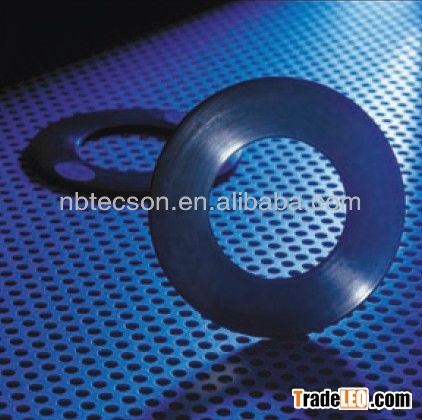

Rubber-steel gaskets have amassed a wide range of applications in sealing technology. Wherever the secure sealing of media with an exceptionally low leak rate, as well as low bolt loads at relatively low temperatures is required, rubber-steel gaskets provide the optimal solution.

The steel support ring prevents a blow out of the gasket and increases stability, allowing the rubber-steel gasket to be handled easily, even in difficult fitting conditions.

The rubber sealing material ensures a secure seal is created, even in uneven locations, as it has an excellent ability to adapt to sealing surfaces.

Material of rubber:VITON; NBR; EPDM; CR

Material of steel core:Carbon steel or stainless steel

Mateiral of outer ring:Carbon steel with ZINC coating; Stainless Steel

Thickness:3mm ~ 8 mm

Thickness of ring:3mm ~ 6 mm
