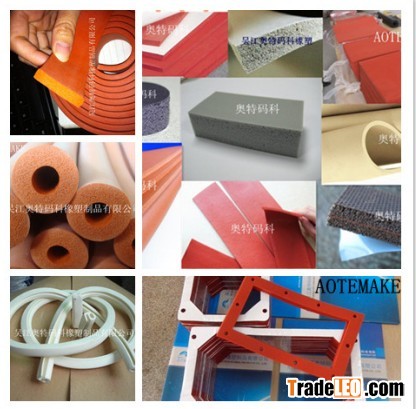

Soft density Silicone sponge

Soft density silicone sponge is with high grade silicone rubber material and inimitable technique, with Good character of high temperature resistant, aging resistant, ozone resistant, insulation property, fuel Oil resistance, lubes resistance, no smell and wear well. High compressibility and low compression set Over a wide temperature range, and good acoustic and thermal insulation properties. Apply to -50C ~+200C protect and heat insulation for long term continuous use and -70C ~ +260C for intermittent Use on all kinds of machine.

Feature:

[Standard size(mm)] 500*500*(5-15) 600*600*(5-15) 400*600*(5- 15) 500*500*(2-30)

500*600*(5-15) 600*800*(5-15) 1000*1000*(5-15) 1000*2000*(5-15)

We can according to your request custom make any size.

If you are interested, please call TEL 15862550868 OR Email zcp12345@126.com,  qq:1084393204

[Special size(mm)]Minimum length: No limitation Maximum length: No limitation, or in roll

Minimum width: No limitation maximum width: 1200 minimum thickness: 1.0 maximum

Thickness:50.0

[Product color] red, grey, natural, white, black or any other required color

[Application] heat transfer print equipment, electronics and electrics, machine and seal[Character]high temperature resistant, aging resistant, ozone resistant, insulation property, fuel oil Resistance, lubes resistance, no smell and wear well, good acoustic and thermal insulation properties.

Technical Index:

Style: Open cell

Surface: Double Fabric Impression

Tear strength: 55Kn/m

Press strength; 30Mpa

Elongation: 100%

Hardness: 8-50 Shore A

Temperature range: -50-220C continuously; -70C ~ +260C for intermittent use

Density: 0.55-0.9g/cm3

Flame resistance: 94V-0

Dielectric breakdown voltage: >3KV

Dielectric constant: 5.5 KHz

Tensile strength: 10-30psi

Volume resistance: 1. *1011 Ohm-m

Thermal conductivity: 0.1 W/M-K

Thick tolerance: ± 0.05mm~0.1mm
