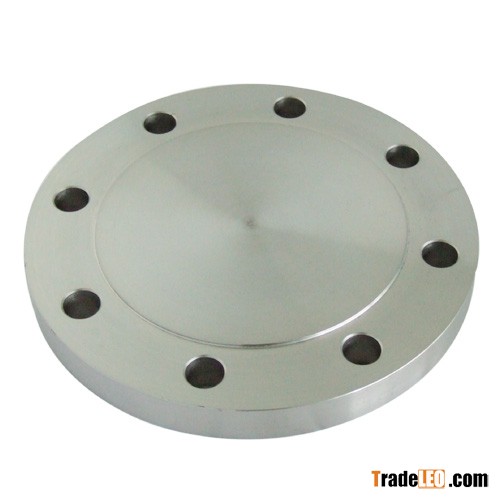

Blind  flanges are pipe flanges used to seal the end of a piping system or pressure vessel openings to prevent flow.  Blind flanges are commonly used for pressure testing the flow of liquid or gas through a pipe or vessel. It also permits easy access to the interior of a line or vessel once it has been sealed and must be reopened.

      Standard:

            ANSI B16.5 blind flanges, ASME B16.47 Series "A" blind flanges, ASME B16.47 Series "B" blind flanges .

      Material:

           Carbon steel: A105/A694 F42/F46/F52/F60,

           Stainless steel: A182 F304, F316, F321, F347, 304L, F304H, F347H, F317L, 316L, F316Ti.

       Connecting Face:

            RF, FF, RTJ, MFM, TG

       Specification scope:

        1/2 in ~ 36in

        Pressure: 150#,300#, 600#, 1500#, 2500# etc,

        W. thickness: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH80S, SCH100, SCH120

       Surface treatment: Transparent oil, rust-proof oil, hot galvanizing

       Applications:

        Suitableforconveyanceofgas,petroleum,chemical,metallurgy,power, fluid, buildingcon      struction, steel structure and hot/cold water         transferring.

       Package: Wooden cases or pallets or customized by the buyers
