Purpose and brief

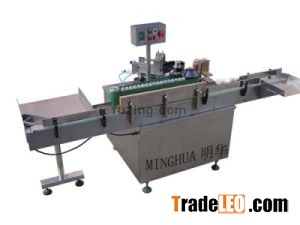

This machine is applied in the paste labeling of various cylinder bottles . The to-be-label-led bottles are transferred by transferring belt (or screw) . The label is sent by the label box to glue into the paste disk . The label in the paste disk is turned to the print area to automatically print the series number. The label belt is sent by the paste disk and the label sticks to the label belt. When it is turned to contact the bottle, it will automatically stick to the bottle
Main technical parameters
JTB
Production ability: 50-80 bottles/min
Applied bottle :50ml-1000ml
Pasting rate:>= 99%
Pasting solution: resin adhesive
Air pressed consumption :0.3 M3/min    Pressure:0.3 Mpa
Vacuum pressure:2 x 10-2Pa
Absorb air speed :8.01/min
Power supply: 380V,50Hz Three-phrase four-wire
Power:2Kw
Overall Size :1800 x 980 x 1300
Advance:  fished product rate is higher, high speed . smooth and reliable running
Main supplier of components:
Gear reducer motor: 90YYJ90 I=60:1                         JIAOJIANG AUTOMATIC
Air drive unit                                             AIRTAC/TAIWAN
Desk , Side board  made by SUS304 stainless steel.
All the touch parts with bottle made by SUS304 or Nylon1010
Electric control : frequency conversion adjust speed

JTB-B
Production ability: 160-200 bottles/min
Applied bottle :10ml-20ml
Pasting rate:>= 98%
Pasting solution: resin adhesive
Air pressed consumption :0.3 M3/min    Pressure:0.3 Mpa
Vacuum pressure:2 x 10-2Pa
Absorb air speed :8.01/min
Power supply: 380V,50Hz Three-phrase four-wire
Power:2Kw
Overall Size :2000 x 1500 x 1300
Advance:  fished product rate is higher, high speed . smooth and reliable running
Main supplier of components:
Gear reducer motor: 90YYJ90 I=60:1                         JIAOJIANG AUTOMATIC
Air drive unit                                             AIRTAC/TAIWAN
Desk , Side board  made by SUS304 stainless steel.
All the touch parts with bottle made by SUS304 or Nylon1010
