Introduction

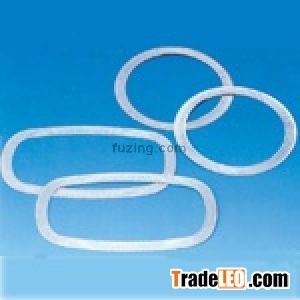

Corrugated metallic Gaskets are made from thin sheet metal formed into embossed concertric rings. They may be used with jointing compund or with a cord cemented into the corrugations. These are essentially line contact gaskets with the corrugations providing mechanical support to the compound or cord filling.


TS1860

Corrugation provide multi-seals across the face of the gasket. Designed for applications to 35 bar. Pitch of the corrugations can be nominally 3mm or 6mm. Three concertric corrugations on each side of the gasket are the recommended standard. Where practical a flat area should be left on each side of the corrugations


TS1861
Corrugated metal Gasket enclosed in a flat metal jacket that covers the inside and outside diameters of the gasket and the contact surfact on one side


TS1863
Corrugated metal Gasket completely enclosed in a two piece metal jacket that covers both inside and outside diameters of the gasket and the contact surface on both sides


TS1865
Flexible Insert Corrugated metal Gasket completely enclosed in a two piece metal jacket that covers both inside and outside diameters of the gasket and the contact surface on both sides
