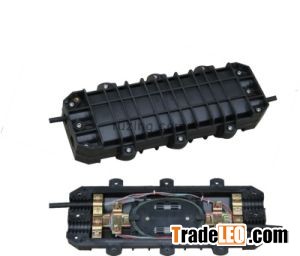

Fiber Optic Splice Closure

1. 4 fiber cable in-out round ports, available for duct, aerial, direct buried.

2. Engineering mechanical plastic body filled with sealing material,

   stainless steel fastening pieces

3. It can be opened after sealing


Dimension: 435x190x85mm

Weight:       2.6KG

Cable diameter: 10-17 mm

Cable entry ports:  two cable entry port on each end

Max capacity of fiber splice:  24 single

Max capacity of splice tray:  4

Max capacity:  96 single

Sealing structure: sticky cincture



Packing

Inner carton dimension:       496x196x98mm       weight:2.6kg

Outside carton dimension:   515x425x575           weight:27.65kg

No. of units per carton:        10 pcs
