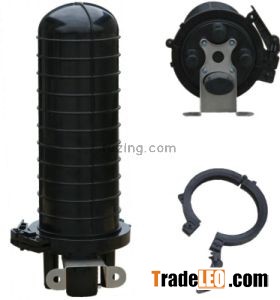

Fiber Optic Splice Closure

1. Suitable for aerial and underground application.

2. Engineering plastic body filled with silicon rubber and sealed with hoop, the entry ports are heat-shrinkable for the ease of intallaiton and reentry, no need to use other sealing adhesive tape

3. No special tools are needed to open the closure

4. it can be opened repeatedly, without changing sealing material

Dimension:435x190

Cable diameter: 7-22 mm

Cable entry ports:  four cables

Max capacity of fiber splice:  12(single)   24(ribbon)

Max capacity of splice tray:  4

Max capacity: 48(single) ,96(ribbon)

Sealing structure:silicon gum material

Structure of cable entry port: heat-shrinkable sealing structure
