Leaky feeder cable/MSHA cables are used when normal radio communication is difficult or impossible in particular communication systems where a discrete antenna would not provide
Adequate coverage. A radiating cable functions not only as a transmission line but also as an antenna.

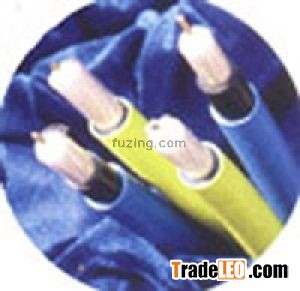

     Li-Bo SLYFYVZ-75-10polyethylene foaming bunchy outer conducter conductor radiating coaxial cables, which are based on international advanced standards, have very good electrical performances and can be widely used in the following applications:

Buildings, Mines, subways and tunnels
Travlers information stations/highway advisory radio
Uncovered area by antennas

Note: Fire-Retardency PE outer sheath can be availabe per customer's requirment.


PHYSICAL FIGGURES:
Frequency: 5 to 500MHz
Impedance: 75 ohms
Attenuation @ 150MHz: 4.0dB/100m
Attenuation @ 450MHz: 6.1dB/100m
Dielectric: Gas injected pe
Inner sheath: BLAcK Fire retardant
Outer sheath: BLUe Halogen Free
Dc resistance inner conductor: <4.5 ohm/km
Dc resistance outer conductor: <4.1 ohm/km
Capacitance: 54pF/m
Insulation resistance: >10.4Mohm/km
Minimum static Bend radius: 150mm
Operating temperature: -40 to +70 degree c
Outer sheath diameter: 16.0mm +/- 0.3mm
Coupling Loss 50% 90%
85mHz: 73.0dB 76.0dB
150mhz: 75.7dB 83.5dB
345mhz: 78.7dB 85.5dB
450mhz: 77.0dB 83.0dB
