Brand:NOK
Model:KZT
Detailed Product Description

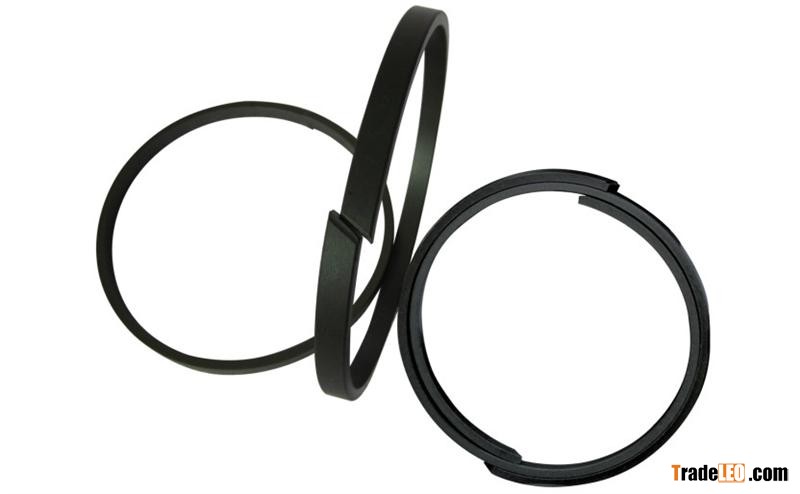

PTFE hydraulic seals
1,material:PTFE
2,working pressure:under 50Mpa
3,temperature range:under 260
4,factory direct sales
Oil Seal KZT
Material:
PTFE+Bronze
Application:
O.D Range[mm] | Temperature Range [° C] | Pressure Range [Mpa] | Velocity [m/s] |
40~250 | -45~+120 | 45 | 5 |
Packaging:
Inner: PVC
Outer:Carton
Delivery Time:
10-20 days after receive the deposit
Payment:
T/T ,L/C
Model | Specification(mm) | Model | Specification(mm) | Model | Specification(mm) |
KZT | 80*6.1 | KZT | 125*7.9 | KZT | 165*9.5 |
KZT | 85*6.1 | KZT | 130*7.9 | KZT | 170*9.5 |
KZT | 90*6.1 | KZT | 135*7.9 | KZT | 180*9.5 |
KZT | 95*6.1 | KZT | 140*7.9 | KZT | 185*9.5 |
KZT | 100*6.1 | KZT | 145*7.9 | KZT | 190*9.5 |
KZT | 105*6.1 | KZT | 150*7.9 | KZT | 195*9.5 |
KZT | 110*6.1 | KZT | 160*7.9 | KZT | 200*9.5 |
KZT | 115*6.1 | KZT | 165*7.9 | KZT | 85*77*14.8 |
KZT | 120*6.1 | KZT | 170*7.9 | KZT | 90*82*14.8 |
KZT | 125*6.1 | KZT | 180*7.9 | KZT | 95*87*14.8 |
KZT | 130*6.1 | KZT | 115*9.5 | KZT | 100*92*14.8 |
KZT | 135*6.1 | KZT | 120*9.5 | KZT | 105*97*14.8 |
KZT | 140*6.1 | KZT | 125*9.5 | KZT | 110*102*14.8 |
KZT | 95*7.9 | KZT | 130*9.5 | KZT | 115*107*14.8 |
KZT | 100*7.9 | KZT | 135*9.5 | KZT | 120*112*14.8 |
KZT | 105*7.9 | KZT | 140*9.5 | KZT | 125*117*14.8 |
KZT | 110*7.9 | KZT | 145*9.5 | KZT |
|
KZT | 115*7.9 | KZT | 150*9.5 | KZT |
|
KZT | 120*7.9 | KZT | 160*9.5 | KZT |
|
