Model:K57.
Send Inquiry

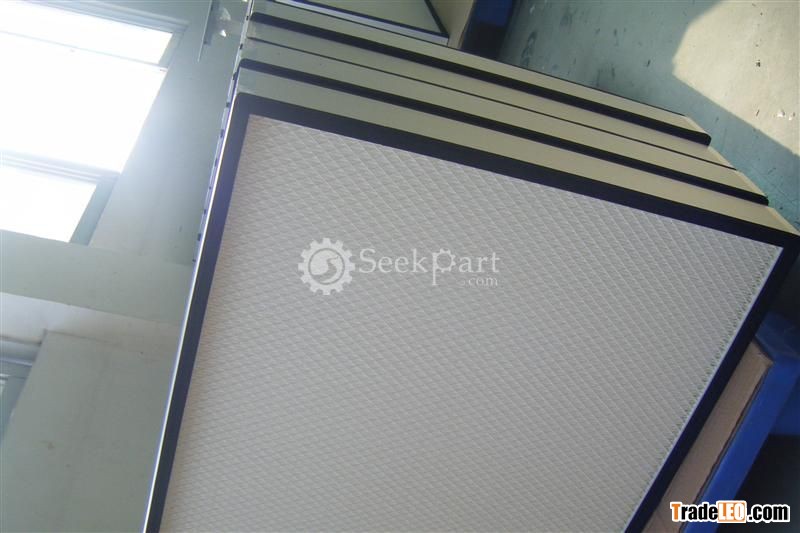

| Mini-pleated HEPA Filter | ||||||
| Final or return filtration for clean rooms | ||||||
| It is patent technology to ensure the V type passage, low resistance and long life-span. | ||||||
| The gasket is continuous expanded polyurethane and semi-round. | ||||||
| The frame is extruded and anodized aluminum. | ||||||
| metal meshed with powder coated to protect the filtration media from damage. | ||||||
| The customized size is available. | ||||||
| Adopting the laser to scan the filter one by one (MPPS). The efficiency is 95%-99.999995%. And we can provide the test report for each filter. | ||||||
| Purification efficiency: H11-H14, U15-U17 (EN 1822) | ||||||
| Item No.K57 | ||||||
| OEM/Customized design are availble. | ||||||
| Dimension (W*H*D)(mm) | air flow (m3/h) | Media area (m2) | holding dust(g) | primary resistance (by 0.5m/s) | final resistance | Efficiency 0.3um |
| 305*305*50 | 170 | 1.8 | 110 | <=220Pa | 440Pa | >=99.99% H13-H14 |
| 484*484*50 | 440 | 4.6 | 290 | <=220Pa | 440Pa | |
| 610*610*50 | 700 | 7.5 | 460 | <=220Pa | 440Pa | |
| 915*610*50 | 1050 | 11.2 | 700 | <=220Pa | 440Pa | |
| 1220*610*50 | 1400 | 14.9 | 910 | <=220Pa | 440Pa | |
| 305*305*69 | 240 | 2.5 | 160 | <=220Pa | 440Pa | |
| 484*484*69 | 620 | 6.6 | 410 | <=220Pa | 440Pa | |
| 610*610*69 | 1000 | 10.7 | 650 | <=220Pa | 440Pa | |
| 915*610*69 | 1500 | 16 | 980 | <=220Pa | 440Pa | |
| 1220*610*69 | 2000 | 21.3 | 1300 | <=220Pa | 440Pa | |
| 610*610*90 | 1400 | 14.9 | 910 | <=220Pa | 440Pa | |
| 915*610*90 | 2100 | 22.3 | 1370 | <=220Pa | 440Pa | |
| 1220*610*90 | 2800 | 29.8 | 1820 | <=220Pa | 440Pa |
