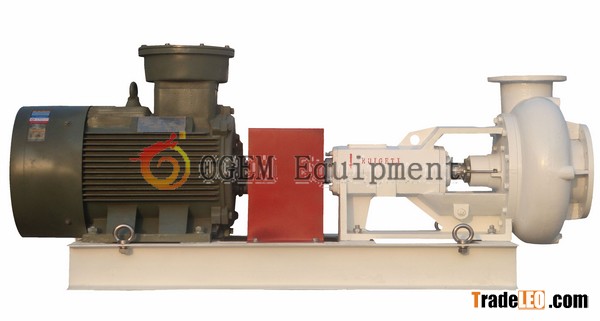

Centrifugal pump of OGEM Equipment is the ideal equipment providing power to desander,desilter,mud mixing pump.SB series centrifugal pump also can be used as feeding pump and trip pump.SB Series design and configuration ensure match equipments work best.OGEM centrifugal pump adopts mechanical seal.Most parts are interchangeable providing convenience.
SB Series Centrifugal pump parameters
Model | Motor | Flow rate | Head | Efficiency | Shaft power | NPSH | Frequency |
SB8*6-14 | 75KW | 320m3/h | 40m | 65% | 53.63 | 5 | 50Hz |
SB8*6-12 | 355m3/h | 43m | 66% | 59.5 | 4.8 | 60Hz | |
SB8*6-13 | 55KW | 290m3/h | 33m | 64% | 40.7 | 5.5 | 50Hz |
SB6*5-12 | 196m3/h | 48m | 61% | 42 | 3 | 60Hz | |
SB6*5-13 | 45KW | 180m3/h | 34m | 60% | 27.8 | 3 | 50Hz |
SB5*4-14 | 149m3/h | 61m | 58% | 42.7 | 4.6 | 60Hz | |
SB6*5-12 | 37KW | 160m3/h | 30m | 60% | 22 | 3 | 60Hz |
SB5*4-12 | 112m3/h | 45m | 58% | 23.7 | 4.6 | 50Hz | |
SB6*5-11 | 30KW | 200m3/h | 21m | 62% | 18.5 | 2.5 | 50Hz |
SB5*4-11 | 112m3/h | 37m | 57% | 19.8 | 4.6 | 60Hz | |
SB5*4-12 | 22KW | 90m3/h | 30m | 56% | 13.1 | 4.5 | 50 Hz |
SB5*4-10 | 105m3/h | 30m | 57% | 15.1 | 4.2 | 60Hz | |
SB5*4-11 | 18.5KW | 90 m3/h | 24m | 56% | 10.5 | 4.5 | 50Hz |
SB4*3-12 | 55 m3/h | 46m | 48% | 14.4 | 4 | 60Hz | |
SB4*3-13 | 15KW | 50 m3/h | 40m | 48% | 11.3 | 4.5 | 50Hz |
SB4*3 | 54 m3/h | 35m | 47% | 10.9 | 4 | 60Hz | |
SB4*3-12 | 11KW | 45 m3/h | 30m | 47% | 7.8 | 4 | 50Hz |
SB3*2-12 | 28 m3/h | 45m | 40% | 8.6 | 3.1 | 60Hz | |
SB3*2-12 | 7.5KW | 45 m3/h | 24m | 46% | 6.4 | 4 | 50Hz |
SB3*2-11 | 25 m3/h | 35m | 41% | 5.8 | 3.1 | 60Hz | |
SB3*2-11 | 5.5KW | 20m3/h | 23m | 39% | 3.2 | 3 | 50Hz |
