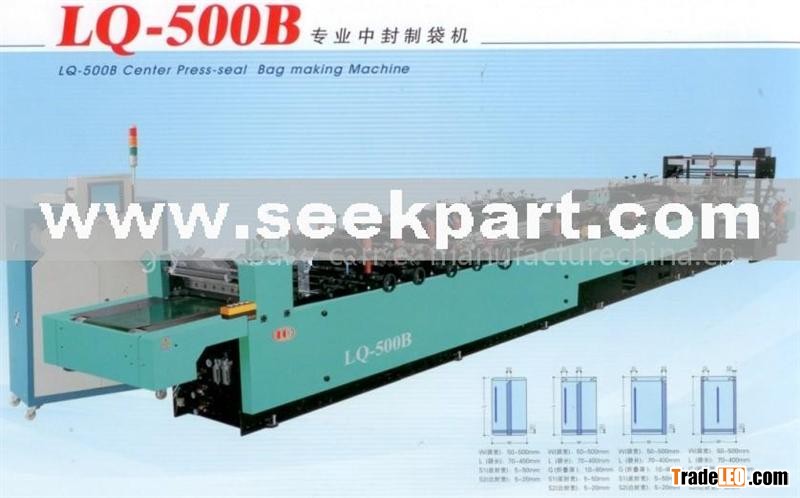

Application scope

Material: various compound films.

Roll folding: max width:850mm,max diameter:600mm.

Adaptability

Bagging speed: 150 parts/min (mechanical design speed), approx, 36m/min.

Bagging width: Max width 600mm

Bagging length:50—400mm, (multiple conveying device can be adopted when over-long), when the set program is above 400mm,it will automatically change into multiple conveyances.

Notes: The actual operation speed will reduce for the reason of the bag type and material.

Warping mode

Fabrication: put the warp beam horizontally, with V fold support and pneumatically lock.

Control:  tension is automatically controlled by swimming roller, magnetic powder brake displacement sensor.

Driving mode

Feeding traction :driven by servomotor

Upper & lower sealing press : drove by alternating electrical machinery( servomoter ).

Functions

Temperature:0~300℃,contact-free automatic control, CRT displaying.

Automatic count: Presetting is available

Punching device: time can be presetting, continuous or interval punching is available.

Working mode: printing, non-printing.

Mode of multiple conveyances: twice to six times conveyance.

Measurement for length: distance between color scales can be measured photo-electrically.

Selectivity :feeding without movement, upper & lower regulating trimmer can be selected.

Message alert: lost of photo electricity, lost of temperature, servomotor alarm, tesion alarm and autoswith off the machine.

Feeding driving servomotor: 1.5KW×2=3.0KW

Upper & lower driving motor:3.0KW×1=3.0KW

Warping traction motor:0.55KW×1=0.55KW

Middle-seal device:4.8KW×3=14.4KW

Lateral heat seal device:4.8KW×3=14.4KW

Plastic Middle-seal:4.8KW×2=9.6KW

Control system and others:3.5KW

Total :Approx 50KW

Gas pressure :0.6Mpa(6kgf/cm³)

Cooling water :Approx 15L/min

Gross weight of equipment: Approx 4.5T

Dimension (Length×width×high): 10000×1300×1580mm

Control mode

Adopts the industrial control equipment, domestic displayer.

Adopts multiple photoelectric control.

Notes

The factory has the power to change the specification of products without addition notice.
