Description

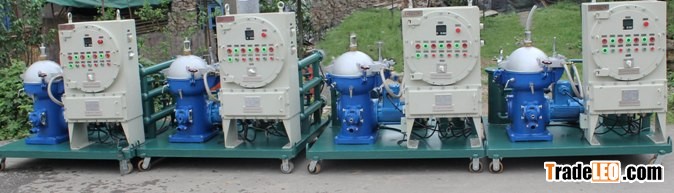

NSH centrifugal separators, using principle of different density of oil,
water, solid (light, heavy phases) getting different velocity, separate
the insoluble liquids or solid particles.
After getting through heating system, the viscosity of oil lowers
down. Then it is fed in through a system of closed lines. The heavy
liquid phase is pressure discharged by means of a centripetal pump
(7). The clean oil is also discharged by means of a centripetal pump
(8). The centrifuges operate with regulating rings for the heavy
phase.

Technical Data
• Rated capacity of 500 (L / h)
• Drum diameter 250mm
• Drum speed 8100 (r / min)
• Counter speed 79 ~ 83 (r / min)

• Separation factor 9760
• Motor Model Power Y112M-4 4KW
• Heating power 18KW
• Form of artificial slag
• Gear pump discharge pressure of ≥ 0.6 (Mpa)
• Working pressure ≤ 0.33 (Mpa)
• Working oil temperature 20-80 (℃)
