Brand:OEM
Model:EI-75 XXXX
about LMC
We are a professional Engineering company, with offices in China, Zhejiang Province and Shenzhen. We run enginering projects for various international companies in different countries such as USA, Canada, Mexico, Brazil, Spain, Italy...
Our company has a history back to 2003 developing engineered products from China and other Asian countries.
Support close to you
We can povide you with local support in any of our offices in USA, Mexico, Chile, Colombia and Spain.
We have a mix of western-local engineers to your service, where quality and reliability are the key to have a safe purchase.
about this product line:

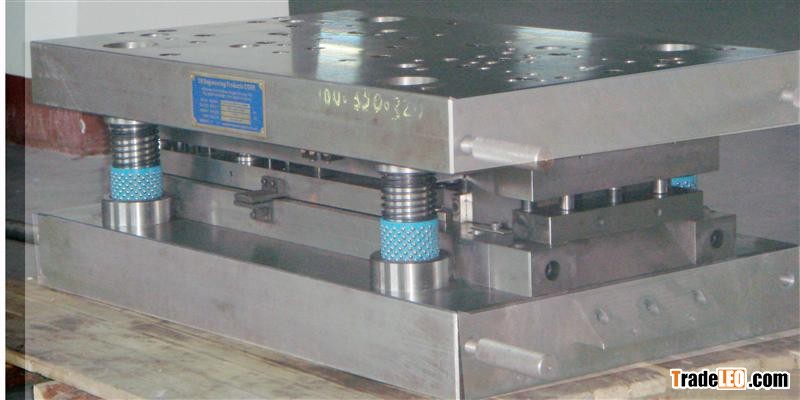

With assistant of CAD/Solidwork, advanced process technology, high precise CNC,electrical discharge machine,wire-cutting machine,we manufacture serious stamping mould including blanking mould, deep-drawn mould, forming mould, rotary extrusion mould....
Item | Description |
Material of Part | DC04,DC03,S550MC,S355MC,SPCC,SUS304,SECC,AL, Brass, CU etc. |
Material of Die | 1.2379,D2,CR12MOV,SKD61,SKD11, 1Cr18Ni9Ti, V10,45# ,M2 etc. |
Die type | progressive die,progressive transfer die,stage die, |
Cavity | 1-out,2-out,6-out |
Die Precision | 0.002mm-0.05mm |
Drawing format | .igs, .step, .x_t, .pdf, .dwg, .dxf, |
Die life | 10000~5000000 shots |
Lead time | First trial of die in 20~55 days after die construction /confirm/ied |
Service | Full service of design and manufacture: stamping die,stamping part,injection mold,injection part... Our company also is good at product design. |
press | from 6Ton to 600Ton |
superiority | progressive drawing die,transfer drawingdie |
The progressive die stamping process characteristics include:
- The utilization of multiple cutting and/or forming operations simultaneously,
- Excellent suitability to produce small workpieces at a rapid rate,
- The necessity to invest in expensive die sets,
- The ability to save time and money by combining forming operations,
- The capability to maintain close tolerances, depending on the tools.
