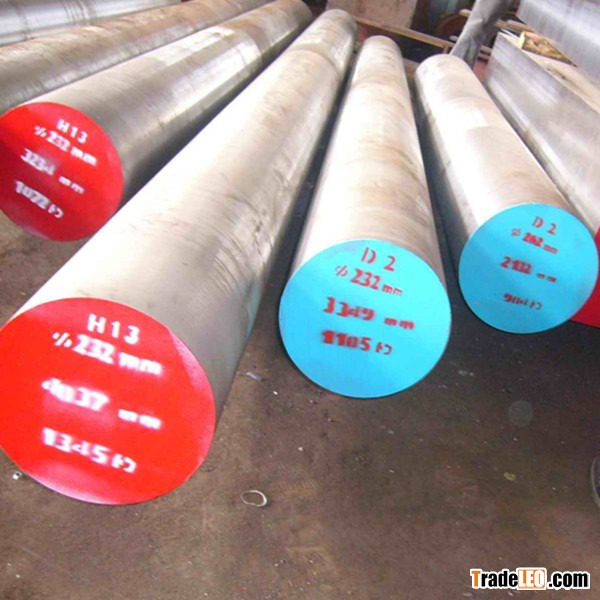

H13 tool steel 1.2344 material
1.Steel grade:
GB:4Cr5MoSiV1 AISI/ASTM:H13 DIN:1.2344 ASSAB:8407
2.Chemical composition(%):
| C | Si | Mn | Cr | Mo | V | P | S |
0.32-0.42 | 0.8-1.2 | 0.2-0.5 | 4.75-5.5 | 1.1-1.75 | 0.8-1.2 | ≤0.03 | ≤0.03 |
3.Character:
High purity,high hardness,good abrasion resistance,good tenacity and thermal fatigue ability.
4.Specifications:
Round dia:80-350mm
Plate Thickness:70-410mm,Width:410-810mm
5.Application:
Used for aluminum alloy die-casting mould,zinc alloy die-casting mould,hammer forging die,high-speed precision forging die.
6.Production process:
7.Equipments:
