Model:1''

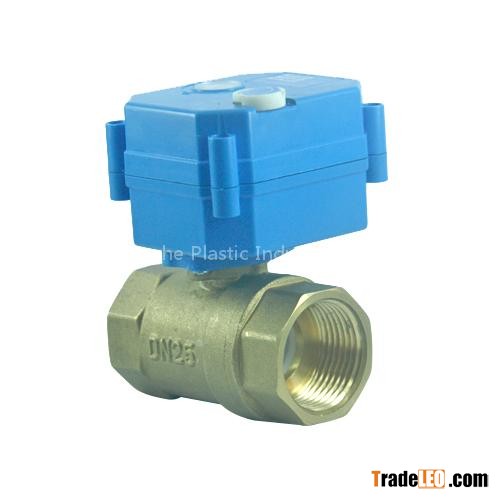

2 way mini motor valve,1/2’’-1’’,different line control,DC5V/DC12V/DC24V,IP65,1.5Mpa
Detail description
Product specifications | 1'' |
Medium pressure | ≥1.5MPa |
The pressure of valve broken | ≥3.5MPa |
Circulation medium | Water,air |
Rated voltage | DC5V/DC12V |
Working current | ≤50MA |
Open/close time | ≤5S |
Extra long time | 50000 times |
Body material | Brass /copper |
Actuator material | Engineering Plastics |
Airtight | Pressure 0.20Pa,pressure maintaining 15s,Spillage≤0.122ml/s |
Actuator rotation | 90° |
Environment temperature | -20℃~90℃ |
Liquid temperature | 2℃~90℃ |
Manual override | Yes |
Line Control | 2 Lines control |
Design feature
1 All-copper gear design ,high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance
For occasions
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system,small-scale industrial automation equipment, environmental protection.
