Model:V 10-28/2-1.1F
Send Inquiry

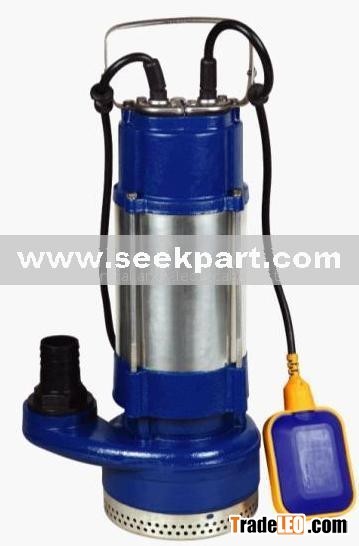

Waster Water Pumps with two impellers
Model Number: V 10-28/2-1.1F
Detailed Product Description
Materials:
1) Pump body: Cast iron
2) Impeller: Cast iron
3) Motor housing: Stailess steel
4) Motor wire: Copper
5) Mechanical seal: Ceramic & graphite
6) Shaft: 45# steel
| Model | V 10-28/2-1.1F |
| Supply Power | 220-240V/50HZ |
| Input Power | 1100W |
| Max Head | 28m |
| Max Flow | 10m3/h |
| Max dia.of particle | 20mm |
| Outlet | 50mm |
| Cable | 9m |
| G.W. | 33KGS |
