Brand:Chi Cheng
1.Reasonable price,Good quality.
2. high strength,low protraction
3.small matching tolerance

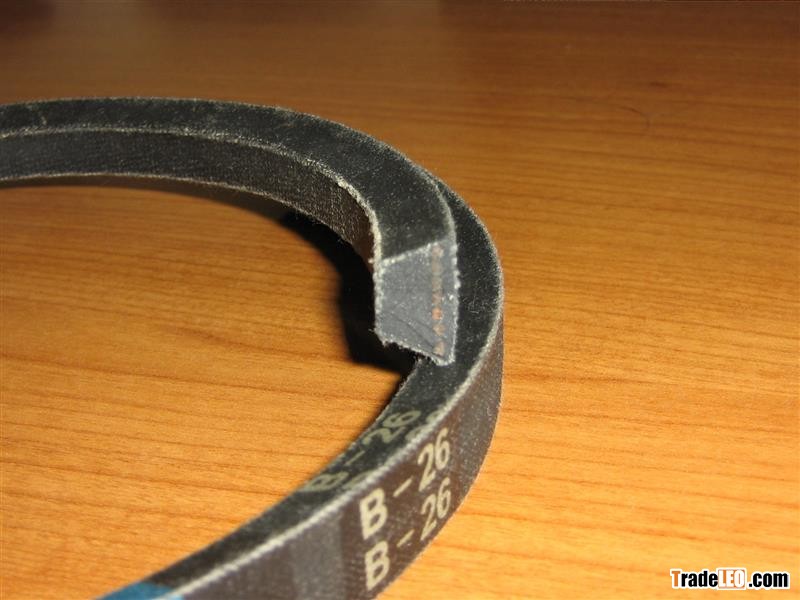

Classical V Belt : Z/A /B/C/D/E/FM/3V/5V/8V/3L/4L/5L
1) V belt has been extensively used for power transmission on machinery and equipment.
2)V belt adapts to requirements of heavy power, high speed, long lifetime, small distortion and small space occupation etc.
3) V belt neither extends nor rolls over, has long life time , reduces number of replacement, maintenance time as well as maintenance cost.
4) Customized orders welcomed
| Classical v belts series | ||||||
| BELT TYPE | Z | A | B | C | D | E |
| TOP WIDTH | 9.5 mm | 13mm | 17mm | 22mm | 32mm | 38mm |
| HEIGHT | 5.5mm | 8mm | 11mm | 14mm | 19mm | 23mm |
| ANGLE | 40° | 40° | 40° | 40° | 40° | 40° |
| LENGTH | 305-2540mm | 305-5080mm | 508-15240mm | 762-15240mm | 2540-15240mm | 2540-15240mm |
| 12"-100" | 12"-200" | 20"-600" | 30"-600" | 100"-600" | 100"-600" | |
