Exporter In China XLPE insulation 10 Pair Instrumentation Cable with Solid Copper Conductor LSOH instrument Cable
Application of Instrument cable 10x 2x 0.5 mm2
The unarmoured LSOH versions (Part 1 Type 1) are generally use for indoor installation and suitable for
wet and damp areas. Generally used within industrial process manufacturing plants for communication,
data and voice transmission signals and services, Also used for the interconnection of electrical
equipment and instruments, the LSOH sheath can reduce toxic smoke and fume emission.

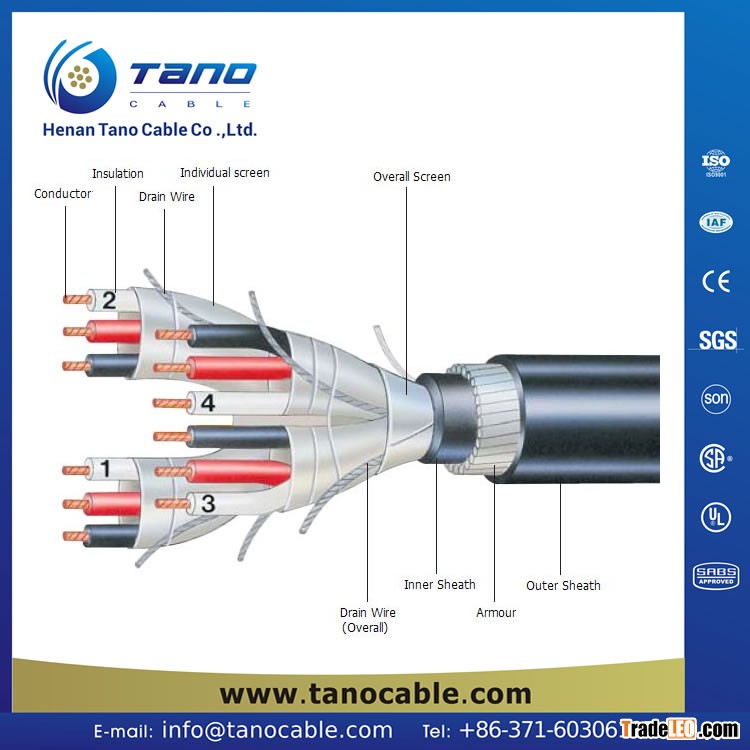

Construction of Instrument cable 10x 2x 0.5 mm2
| Conductor | Annealed or tinned copper, sizes: 0.5mm2 and 0.75mm2 mulitistranded(Class 5), 0.5 |
| mm2, 1.0 mm2 solid(Class 1), 1.5mm2 or 2.5mm2, multistranded(Class 2) to BS6360 | |
| Insulation | XLPE (Cross linked Polyethylene), or PE (optional) |
| Pairing | Two insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Colour code | See technical information |
| Individual screen | Aluminium/polyester tape is applied over each pair metallic side down in contact |
| with tinned copper drain wire, 0.5mm2 | |
| Binder tape | PETP transparent tape |
| Collective screen | Aluminium/polyester tape is applied over the laid up pairs metallic side down in |
| contact with tinned copper drain wire, 0.5mm2 | |
| LSOH(Low Smoke Zero Halogen) sheath | |
| Outer sheath | Flame retardant to IEC60332-3-22 |
| Halogen free to IEC60754-1 | |
| Low smoke emission to IEC61034-1-2 | |
| Sheath colour | Black or blue |
Mechanical and Electrical Properties of Instrument cable 10x 2x 0.5 mm2
| Operating temperature: -20 °C up to + 90 °C ( fixed installation) | |
| 0 °C to +50 °C (during operation) | |
| Minimum bending radius: 5 x overall diameter |
| Conductor Area Size | mm 2 | 0.5 | 0.5 | 0.75 | 1 | 1.5 | |
| Conductor Stranding | No. x mm | 1 x 0.8 | 16 x 0.2 | 24 x 0.2 | 1 x 1.13 | 7 x 0.53 | |
| Conductor resistance max | ohm/km | 36.8 | 39.7 | 26.5 | 18.2 | 12.3 | |
| Insulation resistance min | Gohm/km | 5 | 5 | 5 | 5 | 5 | |
| Capacitance unbalance at 1 | pF/250m | 250 | |||||
| kHz(pair to pair screen) | |||||||
| Max. Mutual Capacitance @ 1 | pF/m | 115 | 115 | 115 | 115 | 115 | |
| kHz forNon OS or OS cables | |||||||
| (except one-pair and two-pairs) | |||||||
| Max. Mutual Capacitance @ | pF/m | 75 | 75 | 75 | 75 | 75 | |
| 1 kHz IS/OS cables (include 1 | |||||||
| pair and 2 pair) | |||||||
| Max. L/R Ratio for adjacent | μH/ohm | 25 | 25 | 25 | 25 | 40 | |
| cores(Inductance/Resistance) | |||||||
| Test voltage | Core to core | V | 1000 | 1000 | 1000 | 1000 | 1000 |
| Core to screen | V | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Rated voltage max | V | 300/500 | 300/500 | 300/500 | 300/500 | 300/500 | |
