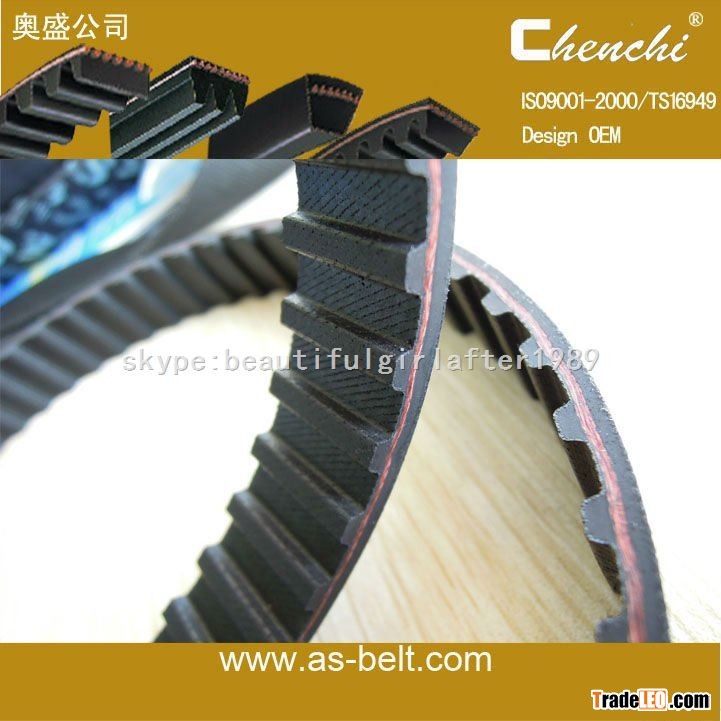

Type:135RHX254
OEM:94416 CT513
Tooth Number:135 Width:25.4mm
Qulity Guarantee:60000km~80000km
Certificate:TS16949,ISO?

?

Zhoushan Aosheng Auto Transmission Belt Manufacturing Co., Ltd. is specialized in producing Chenchi(fly with wings fully open)brand neoprene synchronous belts,poly v-belts and other timing belts,which are used in imported cars.

Description:

For the transmission of car engine camshaft,in a variety of transmission speed of change and high temperature conditions,it still has the bese power transmission.OWBKsynchronous belts'interface and structure of each part of the smallest details are designed to be very perfect.

Construction:

l Top surface PVC wear-resistant rubber

l Tension line:a very low elongation of the glass fiber tension line

l base layer:PVC rubber

l Fabric:abrasion-resistant polyamide

?

Material feature

?

(1) Layer of glass fiber tensile

???? Tensile layer is made of glass fiber strands of glass fibers of the rope, along the tape width of the spiral to the section of the tape around the cloth line position, its high strength, small elongation, corrosion resistance and heat resistance excellent knowledge erosion.

(2) Neoprene belt back

?? Neoprene back with it firmly bonded glass fiber alignment in the section plays a protective role of tensile materials, the need to use the drive with the back of the occasion, to prevent damage caused by the friction, it is more than polyurethane timing belt back more excellent hydrolysis resistance and heat resistance.

(3) Neoprene toothed

?? With teeth by the shear strength, hardness neoprene appropriate composition, require sophisticated and precise distribution of the molding position to the alveolar properly engaged with the pulley, the tooth root with the provisions of section line is the distance from the bending season No change.

(4) Layer of nylon pack cloth

?? Layer of nylon pack cloth tape to protect against friction, should be a superior wear resistance, friction coefficient is composed of nylon cloth.

?

?The characteristics of timing belt

?

(1) Drive accurate work without sliding, with a constant transmission ratio;

?

?

(2) Smooth transmission, with a cushion, damping capacity, low noise;

?

?

(3) High transmission efficiency, up to 0.98, energy saving effect is obvious;

?

?

(4 ) Easy maintenance, no lubrication, low maintenance costs;

?

?

(5) Ratio range, generally up to 10, the line speed of up to 50m / s, with a large range of power

transmission, up to a few watts to hundreds of kilowatts ;

?

?

(6) Can be used for long distance tr ansmission, up to 10m above the pitch

?
