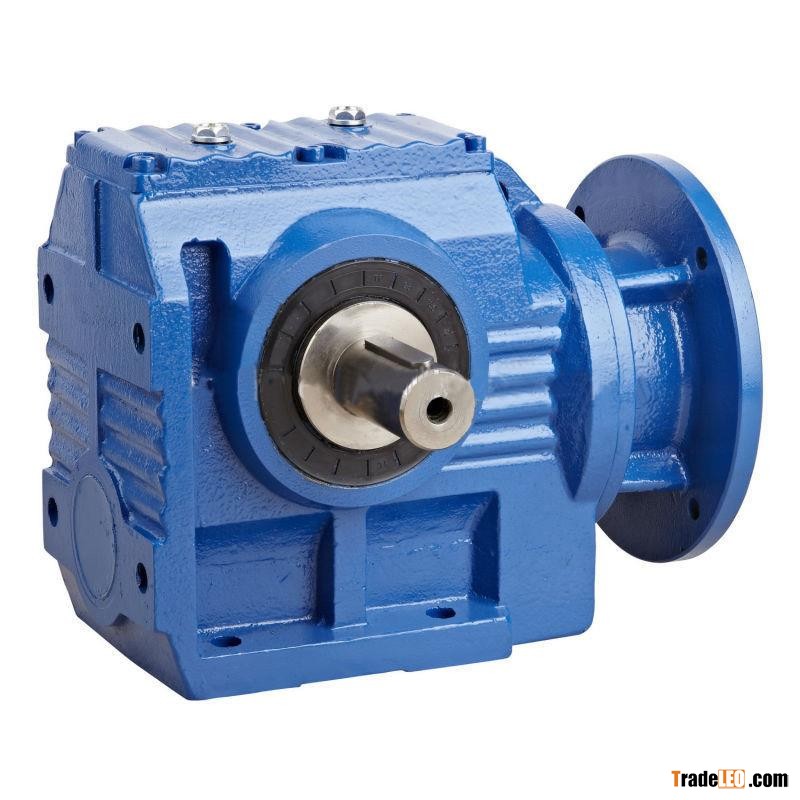

1)The out-put speed shaft is vertical with the in-put shaft
2)(gear box)(gearbox)(helical reducer)

Characteristic:
1, Helical-Bevel Gear Units are designed for continuous duty under difficult operating conditions.
2, Gears are carburized to a hardness of 58 - 62 HRC for durability.
3, Gearcase and flanges of high strength gray cast iron.
4, Foot mounted, flange mounted, foot/flange mounted, shaft mounted, flange mounted with hollow shaft, or shaft/flange/foot mounted.

Technical data:
Input power: 0. 12KW-160KW
Output torque: 185N. M-17000N. M
Transmission ratio: 5-150

(geared box)(gearbox)(helical reducer)
