Brand:KT-FLEX
Model:SBPZ011

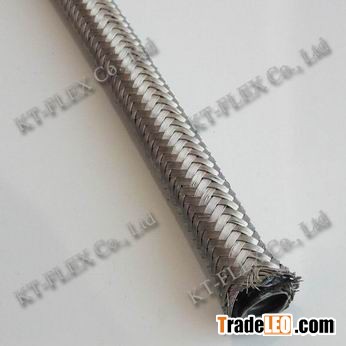

SS braided mesh jacketed flexible conduit pipe:
Protection rating: IP40
Working temperature: -50°C~300°C
Core: stainless steel
Jacket:Stainless Steel Mesh
Compression strength (20mm): 2400N at 10% permanent deformation over 50mm length
Pull off strength of conduit (20mm):1650N
Specification chart:
| Item No. | Normal Size | O.D | I.D | Bending Radius | Packing(m/roll) | |
| Inch | LatusRectum (mm) | (mm) | (mm) | (mm) | ||
| SB007 | 1/4’’ | Φ8 | 11.15-11.45 | - | - | - |
| SB008 | 5/16’’ | Φ10 | 13.85-14.15 | - | - | - |
| SB010 | 3/8" | Φ12 | 16.15-16.45 | 11.50-12.50 | 70 | 50 |
| SB011 | 1/2" | Φ15 | 20.15-20.65 | 14.80-16.00 | 90 | 50 |
| SB012 | 3/4" | Φ20 | 25.15-25.45 | 19.00-20.00 | 110 | 50 |
| SB013 | 1" | Φ25 | 30.65-31.15 | 24.50-25.00 | 150 | 50 |
| SB014 | 1-1/4" | Φ32 | 38.15-38.65 | 31.50-32.50 | 175 | 25 |
| SB015 | 1-1/2" | Φ38 | 45.15-45.65 | 37.50-38.50 | 200 | 25 |
| SB016 | 2" | Φ51 | 58.95-59.45 | 49.50-50.50 | 230 | 20 |
| SB017 | 2-1/2" | Φ64 | 72.95-73.65 | 62.5-65.0 | 250 | 10 |
| SB018 | 3" | Φ75 | 83.95-84.65 | 73.0-76.0 | 300 | 10 |
| SB019 | 4" | Φ100 | 108.65-109.65 | 97.0-103.0 | 500 | 5 |
