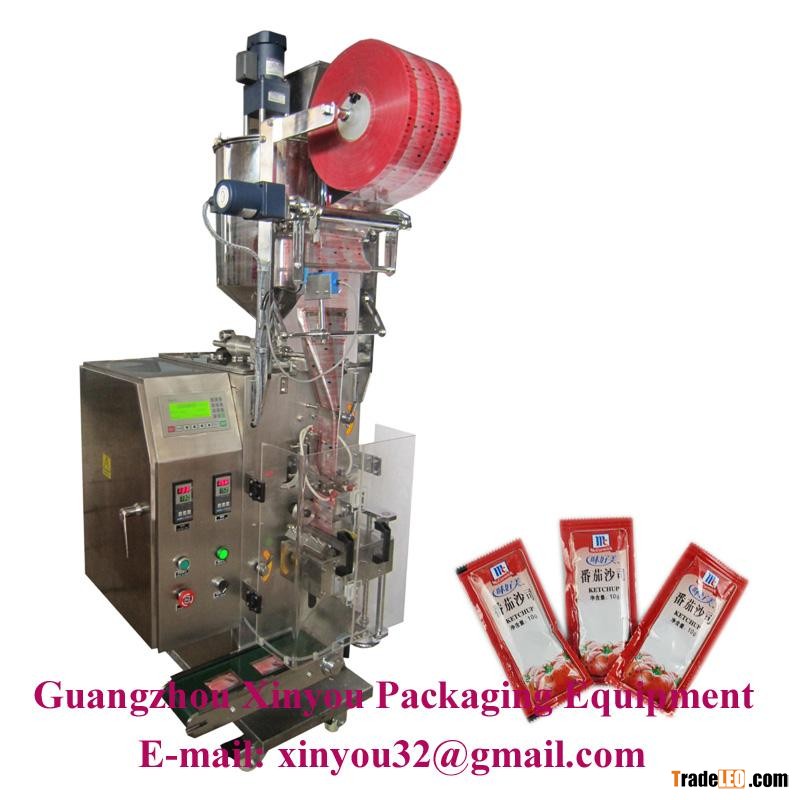

Automatic ketchup Packaging machine
Scope of application:
Suitable for packing Suitable for packing ketchup of product, such as tomato ketchup ,salad ketchup, fruit sauce etc.
Technical specifications:
Capacity | 40-70bags/min |
Rang of measurement | 1-100ml |
Bag size | (L)50-120mm (W)40-100 mm |
Power | 1KW |
Net weight | 235kg |
Source voltage | 220V/50-60Hz |
Overall dimensions | (L)1050*(W)800 *(H)1750mm |
Packing material | Paper/pe , pet/al , ,foil/pe ,Nylon pe&ect |
Automatic ketchup Packaging machine
Features:
1. Material measuring, bag making, filling, sealing, code printing, and bags counting can be done automatically.
2. Control system with Chinese, English display screen, PLC is adopted, after the parameters are set at the display setting unit, the control system will automatically optimize and match the actions, thus achieving best packaging speed. High degree of automation
3. Stainless steel case, totally adapt to the requirement of GMP and medical sanitation requirement.
4. Reliable and stable dual light source photo sensor checking system, ensuring completeness of trademark on the packing bags
5. Control by intelligent temperature controller, the filling system features with high precision.
For more information, please feel free to contact us.
