High Precision Laser Machine for metal Process

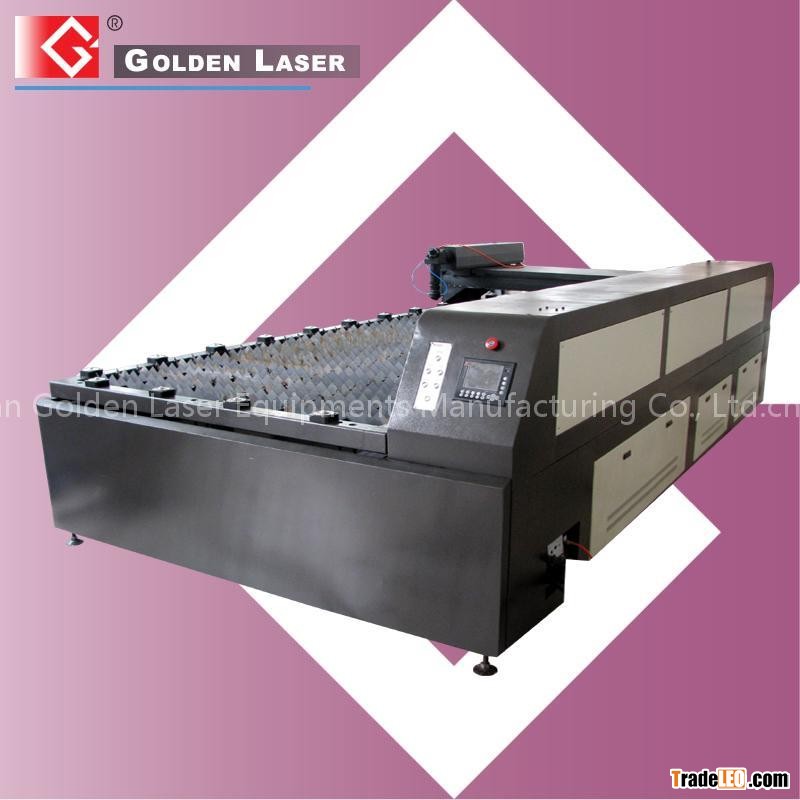

GJMSJG-130250DT Lamp pump YAG high precision laser cutting machine

1. Equipped with medium power (500W / 650W) lamp pump laser tube, any intricate design can be cut within working area 1300mmX2500mm.

2. Suitable for large format cutting thin metal plates.

3. High processing speed, high cutting precision.

4. With following dynamic focusing system, it is capable of automatic focus cutting for different thickness materials.

5. Working table with ball units design for easier loading and unloading, and saving manpower greatly.

6. It can achieve positioning punching and cutting for metal pipes, if equipped with integrated or detached rotary system.

Application Field

Suitable for precision cutting all kinds of  metal sheets, such as carbon steel, mild steel, stainless steel, alloy steel, brass, silver, gold, aluminum and alloys, copper and alloys, titanium and alloys, nickel-molybdenum alloys and so on.

Technical Parameter

Laser type      lamp pump laser tube

Laser power   500W

Cutting area    1300mmX2500mm

Working table  Net saw-teeth work table

No load max speed 0-30000mm/min

Repeating location accuracy  0.1mm

Motion system       offline CNC system, Servo motor, Precision ball screw drive

Cooling system      18KW constant temperature water chiller

Power supply  AC380V 50/60Hz

Supporting format  PLT, DXF, BMP, AI, DST, etc.

Standard collocation      Following focusing, 550W following bottom exhaust

Optional collocation       650W lamp pump laser tube
