Model:TS1318

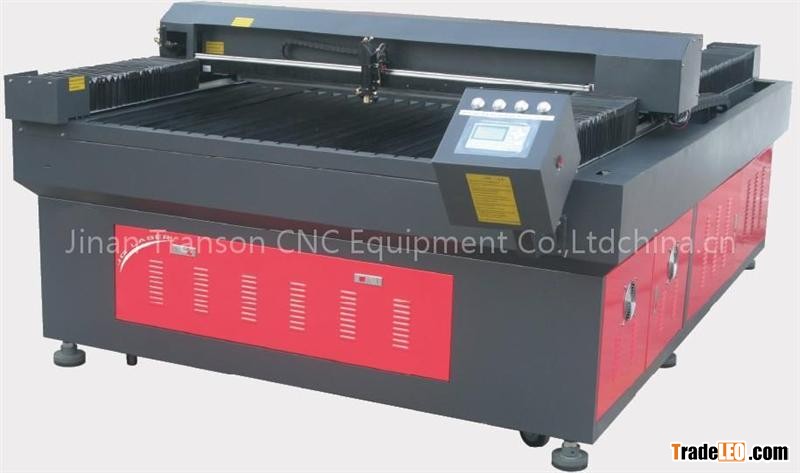

Transon TS1318 Die Boards Laser Cutting Machine Price
Features
1.Die boards laser cutting machine
2.High power water chiller
3.High power air compressor
4.Good quality&high precision
5.CE
Description
1.Cutting speed is fast,good repeatability,the cutting program could be stored into the computer.
2.Good quality and high precision.Laser cutting process is controlled by computer and the precision could reach ±0.05mm,
3.Equipment autonomous design,using high quality laser generator,spot small,stable performance.
4.Operating speed,laser power real-time tunable.
5.Enclosed laser circuit to aviod accidents,enclosed dust covers to avoid pollution to the rails and wires.
Applicable industries
Die cutting,double faced adhesive tape processing,printing and packing,advertisement,furture model,artcrafts industries,etc
Applicable Materials
metal,Dieboard,wood,acrylic,perspex,MDF,leather,composite material,etc.
Parameter
Model | TS1318 die cutting laser machine |
Laser tube | 200w ( Famous GSI brand, made in UK) |
Laser type | CO2 sealed, water cooling, 10.7um |
Working area | 180cm*130cm / 71in*52in (L*W) |
Machine dimension | 230cm*185cm*135cm 96in*73in*53in (L*W*H) |
Driving system | 3-Phase steppermotor or Servomotor |
Driven system | Both X-aixs and Y-aixs are all ballscrews |
Cutting speed | 0-200mm/s |
Laser output | 0-100% software control |
Repeating location | ≤±0.01 |
Supported graphic format | PLT, AI, DST, DXF, BMP |
Supported software | Coreldraw, AutoCAD, Lasercut, Tajima |
Communication connection | USB, PCI (Optional) |
Machine parts
GSI 200w laser tube High efficiency and multifunctional water chiller
Exhaust fan
Control panel
Switches
Samples
18mm Die board
Machine working
MDF cutting
Oranic glass cutting
Tool box
Package
