Model No.:2304-04G2-PF
Product Origin:China
Brand Name:NOXTLON
Price Terms:
Payment Terms:
Certification:

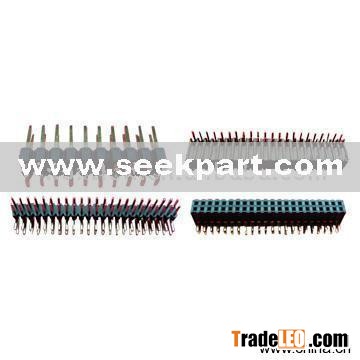

Description:Product Name: Pin Header and Female HeaderModel Number: 2304-04G2-PFPlace of Origin: ChinaFeatures:1) Insulator body: glass filled PBT UL94V-02) Contact material: phosphor bronze3) Contact plating: tin plated or full gold4) Rated current: 5A5) Dielectric withstanding: AC500V (1 minute)6) Insulation resistance: 1,000mΩ at DC 500V (min.)7) Contact resistance: 20mΩ (max.)8) Operating temperature: -55 ~ +120oC9) Soldering temperature: 260oC (10 seconds max.)10) Various lengths for different uses
