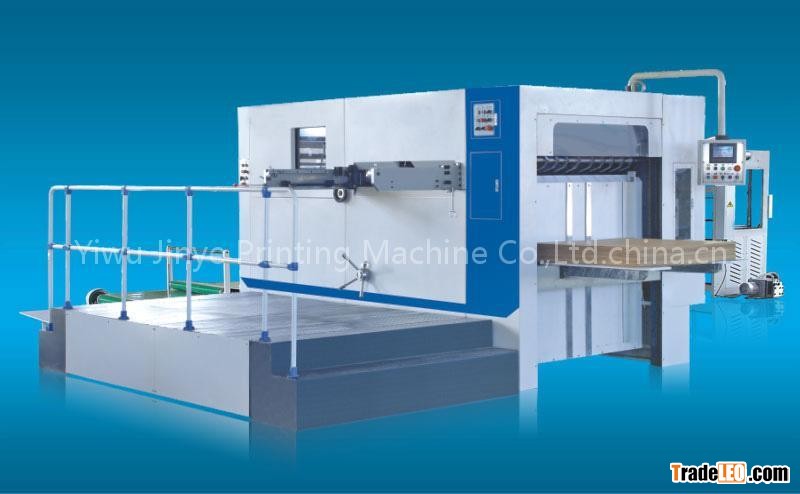

BMY-1450/1500 is a special equipment applying to die-cutting of advanced colorful boxes and cartons. The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has a lot of sensors and safety-ensuring devices to guarantee the safety of operator and the environment. Frontal and back pressure can be adjusted separately. It is convenient to stop the machine by handy. It can also realize die-cutting without clipper margin.
Main Specifications:

Die-cutting Style
 BMY-1450
 BMY-1500


Max. Paper Size
 1450×1030mm
 1500×1100mm

Min. Paper Size
 550×550mm

 550×550mm

Max. Die-cutting Size
 1420×1020mm
 1495×1095mm

Max. Die-cutting Pressure
 300T
 300T

Paper Processed
 Carboard1-8mm
 Carboard1-8mm

Max. Die-cutting Speed
 4500 sheets/h
 4000 sheets/h

Max. Feeding Pile Height
 1400mm(above the level)
 1400mm(above the level)

Max. Delivery Pile Height
 1200mm
 1200mm

Main Motor Power
 11KW
 11KW

Total Power
 17KW
 17KW

Weight
 14T
 18T

Dimensions
 4400×3500×2200mm
 4500×3600×2200mm
