Model:layer raising equipment

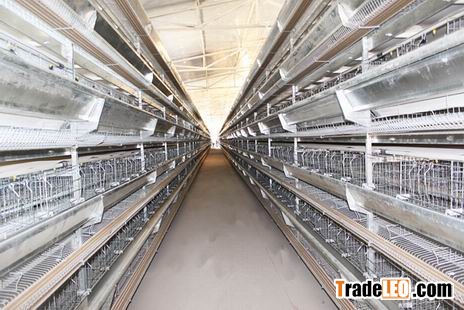

H type 9CLD series layer raising equipment
The H type 9CLD series layer raising equipments are the most advanced machine for layer raising. They are highly automatic and can help save labor cost and improve raising performance greatly. There are model of 9CLD-3180, 9CLD-4240,9CLD-5300,9CLD-6360,9CLD-8480.
Features:
1. Cage is Hot-dip galvanized, and service life can reach 15-20 years;
2. Automatic feeding system, drinking system, manure cleaning system; Labor cost is saved greatly and the operation is more scientific;
3. Egg-collecting system can save labor cost. Broken egg ratio is low;
4. High stock density; The land coverage is less than that of the A frame System.
5. The equipment is easy to maintain and operate for workers.
The equipment consists of below systems:
1 | Cage and frame |
2 | Automatic feeding system |
3 | Automatic drinking system |
4 | Automatic manure cleaning system |
5 | Automatic egg-collecting system |
6 | Ventilation system |
7 | Spraying system for immunity |
8 | Electrical system |
Specification of Equipment and laying house:
Layer quantity/door | 6 |
Door quantity/ cage | 5 |
Cage quantity/ tier | 2 |
Tier quantity/ line | 3,4,5,6, or 8 |
Cage | length 2250mm, width 2240mm, height 345mm |
Suggested Length of laying house | depend on total quantity of layers |
Suggested Width of laying house | 8m for 2 lines, 10m for 3 lines, 13m for 4 lines, 16m for 5 lines |
Suggested Height of laying house | 3.5m for 3 tiers, 4m for 4 tiers, 4.5m for 5 tiers, 5m for 6 tiers |
